5747250-3

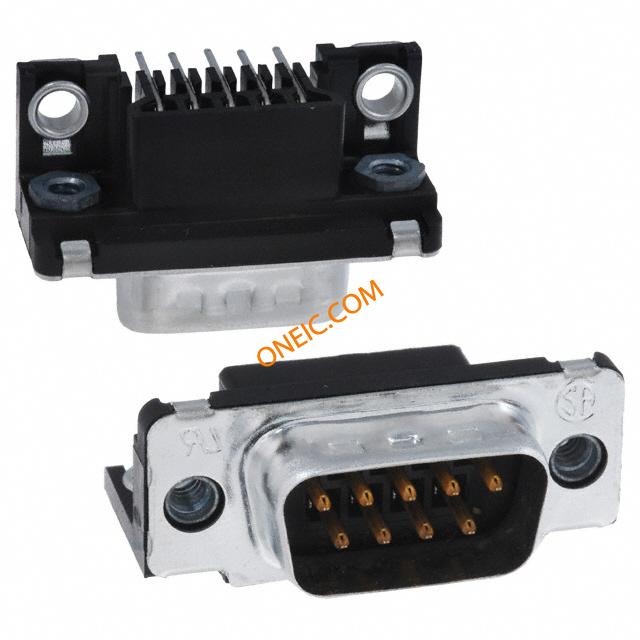

点击放大查看

5747250-3

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P RA318 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS GOLD SUBMINI D-CONNECTS;RT ANGL POST;METAL PLUG W/4-40;9 CON Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.84mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插头 09 MSFL PLUG RA 318 (IN,FM)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量130

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗螺纹插针，4-40 UNC, 螺纹插针，4-40 UNC最大额定电流6A
最小供电电压250VDC/250VAC

机械参数

颜色Black深度18.62 mm
间距2.74 mm宽度18.62mm
高度12.55 mm长度30.81mm
密封型No外形尺寸(长x宽)1
包装方式Tray壳体颜色黑色
引脚样式Round外壳尺寸1
方向直角端接方式Solder
触点尺寸20触头类型Signal
柱间距.108外壳表面处理铜镀锡
第二连接器With触点形状Round
安装类型Through Hole外壳镀层Tin over Copper
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型With
尖端材料（笔尖）Tin over Copper Flash安装样式SMD/SMT
排数2壳体镀层镀锡铜薄层
外壳材料（壳体）Steel电路板厚度0.093 [2.36]
连接器样式D-Sub插入件材料Zinc
锁定特性Threaded Insert, 4-40 UNC磁芯材质黄铜
材料表面处理Clear Chromate外形（宽 x 高）Standard
触头材料Brass壳体材料Thermoplastic
总长度30.81 mm安装特性安装孔
包装数量130面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕With
外形尺寸 长x宽x高8.08 [.318]端接样式Solder
连接器颜色None外径.66 mm [ .026 in ]
触点数9位数9
外壳尺寸-插件Front Metal Shell安装孔直径3.18 [.125]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳与棱镜材料否
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Ground Strap, Grounding Indents可密封否
预装是产品子类型连接器
端口数1 Port其他规格4-40 UNC，螺纹插件

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
