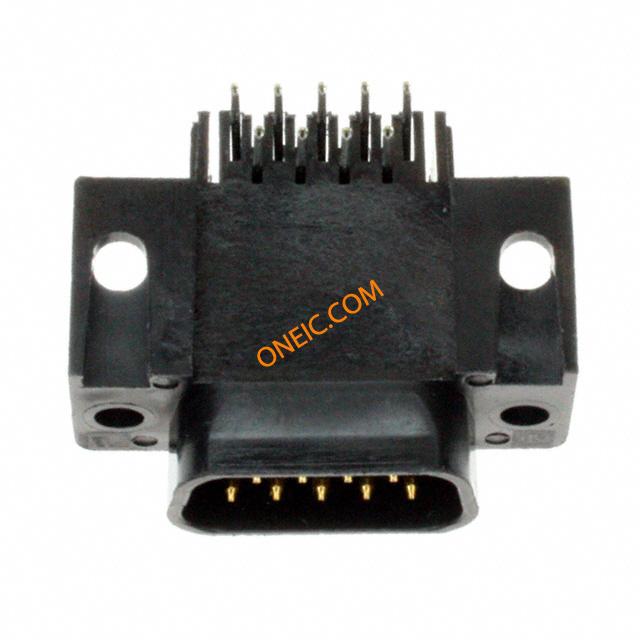

点击放大查看
747467-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors PLUG R/A 9 POS PLASTIC SHELL CONN D-SUB PLUG R/A 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 APFL PLUG RA 590 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | No | 标准编号 | UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 外形尺寸(长x宽) | 1 | 锁定类型 | 不带 |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形, 圆形 | 外壳尺寸 | 1 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | .108 | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | 不带 | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Zinc |
| 连接器样式 | D-Sub | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | 尼龙 GF, 聚酯 GF |
| 安装特性 | 安装孔 | 包装数量 | 140 |
| 面板安装类型 | 不带 | 端接样式 | Solder |
| 外径 | .66 mm [ .026 in ] | 触点数 | 9 |
| 位数 | 9 | 安装孔直径 | 3.18 mm [ .125 in ] |
| 端子柱长度 | 3.18 mm [ .125 in ] | 接触镀层厚度 | Flash |
| 外壳与棱镜材料 | 是 | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | 插头预装了尺寸 20 DF 柱形公端子 | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 料盒尺寸 | 14.99 mm [ .59 in ] | 可密封 | 否 |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | 否 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
