745550-1

点击放大查看

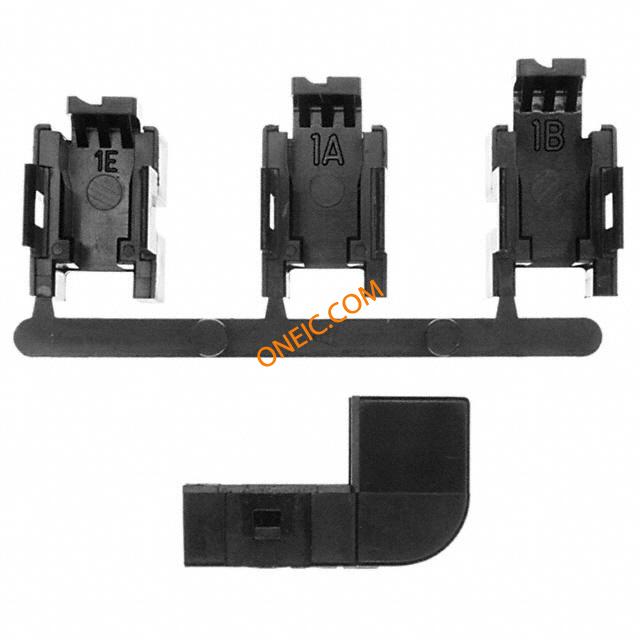

745550-1

制造商
TE Connectivity Ltd.
描述Connector Accessories Backshell and Cable Clamp Thermoplastic Individual D-Sub Backshells CBL CLAMP KIT Cable Clamps CONN CABLE CLAMP COVER 90DEG DB9 Backshell/Cable Clamp 90� 1 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90° 1 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90° 1 Shell Size Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Slide-on Back Cover90° Cable Exit AngleCable Insulation Diameter = 8.38 mmShell Size = 1Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE GLAND/CLAMP, THERMOPLASTIC, SZ1, 8.38MM DIA BACKSHELL,CABLECLAMPKIT,HDE-20,LOWPROFILE,90DEG.,SIZE1,9POS,AMPLIMI HDE 20 KIT 90 DEG CBL CLMP
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间84 Days子类别Backshells
产品类别D-Sub Backshells标准包装数量Bulk
工厂包装数量1

合规参数

RoHSRoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

颜色:Black高度13.97 mm
重量0.009包装方式Bulk
出线方向90°外壳尺寸1
屏蔽类型No螺纹尺寸None
外壳镀层None电缆直径:8.38mm
电缆材料Thermoplastic外壳材料（壳体）Thermoplastic
包装数量Individual Kit电缆端接方式Slide-on Back Cover
绝缘直径8.38 [0.330]位数9
衬套/护套类型Without螺纹/螺钉/孔尺寸:-
外壳与棱镜材料:Thermoplastic

产品信息

备注Each kit is comprised of a cover half and an assortment of cable support gate l类型Backshell and Cable Clamp
产品子类型Backshell/Cable Clamp附件类型Cap (Cover)
射频系列/标准745550适用产品/相关产品D-Sub Connectors Series AMPLIMITE HDE-20

环境参数

NEMA 机架尺寸:-

文档与媒体

在线文档
745550-1?RQPN=745550-1
PDF 文档
1639165.pdf
