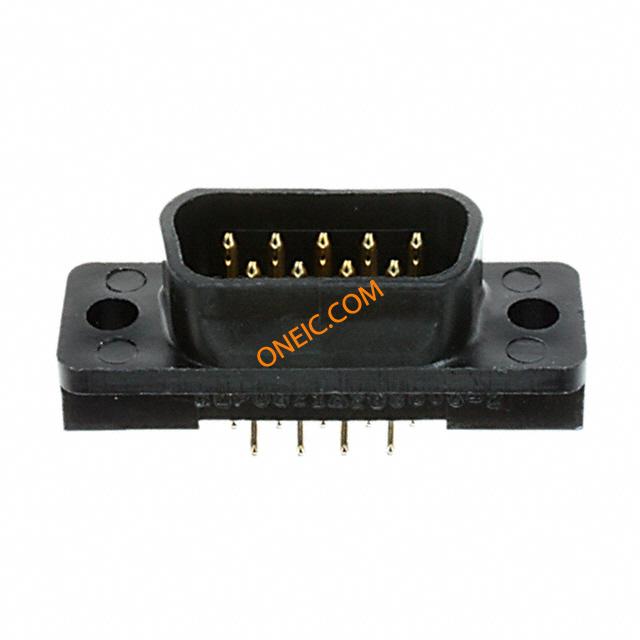

208006-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P PLUG 1071 Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;20AWG;AllPlasticShell 09 PLUG SP/AP STD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | UL E28476 | RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 密封型 | No | 外形尺寸(长x宽) | 1 |
| 锁定类型 | 不带 | 包装方式 | Tube |
| 屏蔽 | 否 | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形, 圆形 | 外壳尺寸 | 1 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | .108 | 第二连接器 | Without |
| 触点形状 | Round | 安装类型 | Through Hole |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Brass | 电路板厚度 | 0.062 â 0.093 [1.57 â 2.36] |
| 连接器样式 | D-Sub | 插入件材料 | 黄铜 |
| 外形（宽 x 高） | Standard | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 安装特性 | 安装孔 |
| 包装数量 | 17 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | Without |
| 端接样式 | Solder | 连接器颜色 | None |
| 外径 | .66 mm [ .025 in ] | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.05 [.120] | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 外壳与棱镜材料 | 是 |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | 否 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .062 – .093 in ] |
