745001-3

点击放大查看

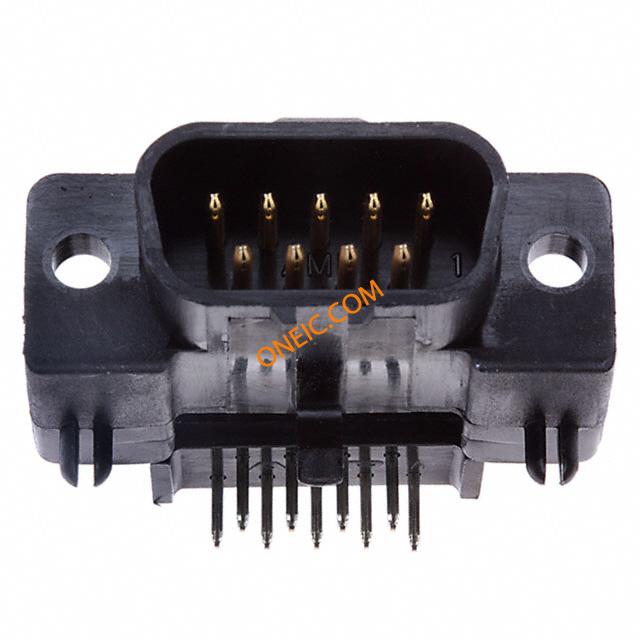

745001-3

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HDJ-20 9P PLUG 595 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HDJ-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 PLUG RA/AP STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量17

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
标准编号UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-2

电气参数

接地方式Without

机械参数

颜色Black间距2.74 mm
密封型No外形尺寸(长x宽)1
锁定类型不带包装方式Tube
壳体颜色黑色引脚样式正方形
外壳尺寸1端接方式Solder
触头类型Signal柱间距.108
第二连接器Without触点形状Square
安装类型Through Hole连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）全塑
电路板厚度0.062 [1.57]连接器样式D-Sub
插入件材料黄铜外形（宽 x 高）Standard
触头材料Brass壳体材料Thermoplastic
安装特性板锁包装数量17
面板安装类型With尺寸/外形0.64 [.025]
接地凹痕Without外形尺寸 长x宽x高14.99 [.590]
端接样式Through Hole连接器颜色None
外径.64 mm [ .025 in ]触点数9
位数9外壳尺寸-插件All Plastic
端子柱长度3.18 [0.125]接触镀层厚度Flash
外壳与棱镜材料是外壳尺寸，连接器布局1 (DE, E)

产品信息

类型D-Subminiature连接器性别PIN
系列HDJ-20料盒尺寸14.99 mm [ .59 in ]
产品特性Board Lock可密封否
制造商全称AMP预装是
产品子类型连接器

环境参数

封装热阻1.57 mm [ .062 in ]

文档与媒体

在线文档
745001-3?RQPN=745001-3
