5747467-1

点击放大查看

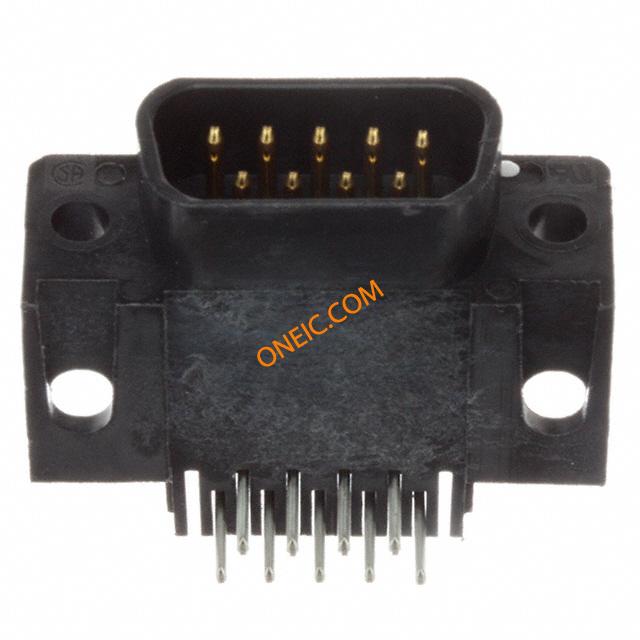

5747467-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P RA590 Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn;D-Sub;PCBPlug;9Pos;RTAng;HD-20Series;20AWG;AllPlasticShell HD-20 PLUG 9P RA 590
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量140

合规参数

RoHSRoHS Compliant海关税号85366930
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HD-20 Series
额定电压125V最大额定电流6A

机械参数

颜色Black深度24.58 mm
间距2.74 mm高度11.48 mm
密封型No重量0.005
占位面积14.99 [.590]包装方式Bulk
外壳尺寸1端接方式Solder
触头类型Signal第二连接器Without
触点形状Round安装类型Through Hole
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型Without
安装样式Through Hole排数2
电路板厚度0.093 [2.36]连接器样式D-Sub
本体材料:Plastic外形（宽 x 高）Standard
触头材料Brass壳体材料Thermoplastic
总长度30.81 mm面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕Without
端接样式Through Hole连接器颜色None
触点数9接触件端接:Through Hole Vertical
位数9外壳尺寸-插件All Plastic
安装孔直径3.18 [.125]端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
制造商全称AMP端口数1 Port

环境参数

工作温度-55°C ~ 105°C
