640440-4

点击放大查看

640440-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 22AWG MTA100 MTA-100CONNECTORTIN,04PMTA100CONNASSY Headers & Wire Housings CLOSED W/O TABS 4P red tin 22 AWG Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100CONNECTORTIN,04PMTA100CONNASSY22AWGRED 04P MTA100 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2500

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Red深度6.99 mm
间距2.54 mm高度13.21 mm
长度10.16 mm [ .4 in ]包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色红色出线方向90°
电缆类型分离式导线, 绞线导线线规22 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Red
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin-Lead Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1外壳材料（壳体）标准
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度10.16 mm安装特性Without
包装数量Loose Piece面板安装类型Without
主要材料InterconnectSystem电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数4
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数4
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器安装孔直径不带
接触件表面处理 - 配合锡铅典型触点布局2.54 [0.100]
表面贴装焊盘尺寸Without接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.3-0.4² [22]
静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
640440-4?RQPN=640440-4

相关型号

2-644486-4

2-644486-4

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings SHROUDED HEADER 4P Straight Post tin Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,04PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 SHRDED HDR ASSY SN

¥2.0740
详情
3-641213-4

3-641213-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 30AU Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASSYPO/STLF TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASSY PO/ST LF

¥2.4140
详情
641214-4

641214-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 4POS 30AU

¥3.6720
详情
3-644694-4

3-644694-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .100 TIN Headers & Wire Housings 4P R/A HDR RETENTIVE Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 R/A HDR RETENTIVE

¥1.1084
详情

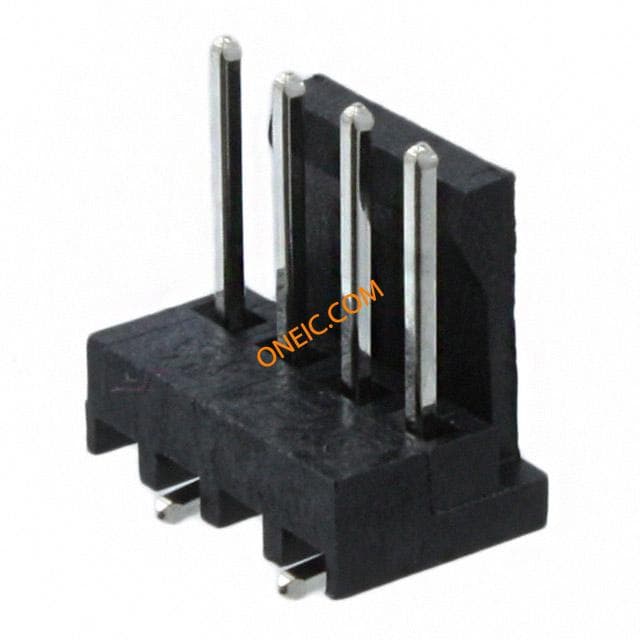

3-647166-4

3-647166-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD MTA-100 CL Connectors CONN HEADER 4POS VERT .100 TIN Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD Product Highlights:Connector4 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 4P MTA100 HDR ASSY,SM,FL,LF

¥5.0429
详情
3-641126-4

3-641126-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 04P VRT F-LOCK MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 GOLD Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASYFL/STRLF TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASY FL/STR LF

¥2.0672
详情
3-647003-4

3-647003-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 28AWG .100 GREEN Headers & Wire Housings 04P MTA100 PSTD CONN ASSY LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 PSTD CONN ASSY LF

¥2.7404
详情
641215-4

641215-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 4POS 30AU Headers & Wire Housings FRICTION LCK HDR 4P Straight Post gold Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASSYFL/ST30AU 04P MTA100 HDR ASSY FL/ST 30AU

¥2.6180
详情
647116-4

647116-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 GOLD Headers & Wire Housings 04P MTA100 HDR HT FL STR 30AU 04P MTA100 HDR HT FL STR 30AU 04P MTA100 HDR HT FL STR 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥5.3720
详情
647051-4

647051-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Tube MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .100 TIN

详情
3-647050-4

3-647050-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 TIN Headers & Wire Housings HDR 02P VRT F-LOCK HTMP Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 HDR ASSY F/L HITEMP

¥6.1200
详情
3-647009-4

3-647009-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 24AWG .100 WHITE

详情
3-644695-4

3-644695-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings NARROW FLT HDR 4P Strt Post w/ret. leg Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header4 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 STR HDR RETENTIVE

¥1.3518
详情
644694-4

644694-4

TE Connectivity / AMP

Headers & Wire Housings NARROW FLT HDR 4P R.A. Post w/ret. Leg CONN HEADER RTANG 4POS .100 TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥0.8092
详情
644486-4

644486-4

TE Connectivity / AMP

ヘッダ & ワイヤハウジング SHROUDED HEADER 4P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 4POS TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.3600
详情

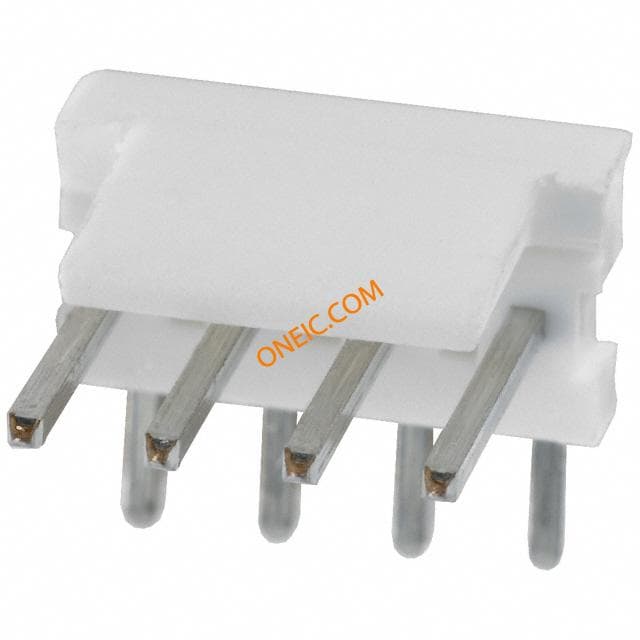

640455-4

640455-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .100 TIN Header 4 way pin 2.54mm MTA-100 Headers & Wire Housings POLARIZED HEADER 4P Right Angle Post tin Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM MTA-100HEADER-TIN,04PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 4路 2.54mm节距 (1排) 直角 PCB 针座 , 焊接端接, 5A, 通孔 04P MTA100 HDR ASSY SQ R/A POL

¥0.2924
详情
3-644456-4

3-644456-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings NARROW FLT HDR 4P Straight Post Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 4WAY, 0.1IN MTA-100HEADER-TIN,04PMTA100HDRASSY(NARROW) TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 引脚管座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASSY (NARROW)

¥0.5814
详情
641216-4

641216-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 4POS 30AU Headers & Wire Housings FRICTION LCK HDR 4P R.A. Post gold Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 HDR ASSY FL/RA 30AU

¥4.3520
详情
3-647018-4

3-647018-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .100 BLUE Headers & Wire Housings 04P MTA100 PSTD CONN ASSY LF 04P MTA100 PSTD CONN ASSY LF

¥2.3120
详情

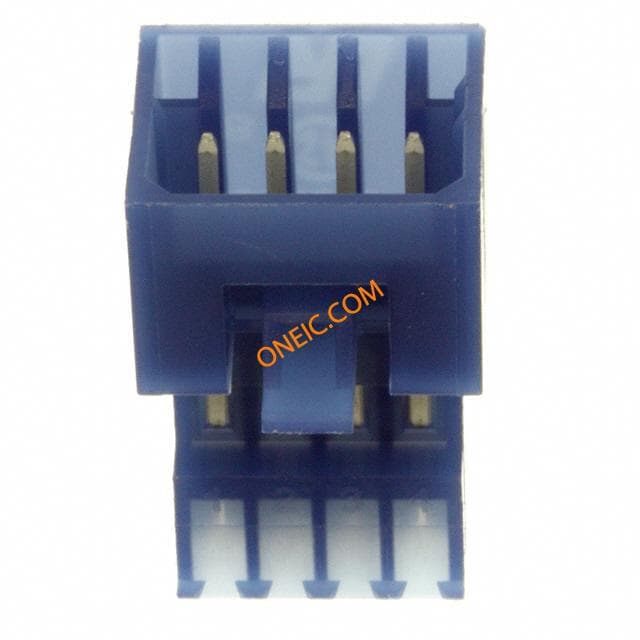

3-647002-4
