3-647018-4

点击放大查看

3-647018-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .100 BLUE Headers & Wire Housings 04P MTA100 PSTD CONN ASSY LF 04P MTA100 PSTD CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量200

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流4

机械参数

颜色Blue间距2.54 mm
高度7.7 mm [ .303 in ]长度12.7 mm [ .5 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色蓝色
电缆类型分离式导线, 绞线导线线规26 AWG
端接方式IDT触头类型Female Socket
第二连接器Without外壳颜色Blue
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Gold Over Nickel触点时序Without
安装样式Wire排数1
壳体镀层Nickel连接器用途Receptacle
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量200面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数4端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数4
兼容外壳尺寸（如TM-700等）标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触镀层厚度15µin (0.38µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]
静电放电屏蔽带有护套（绝缘）厚度1.27 µm, 50 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

相关型号

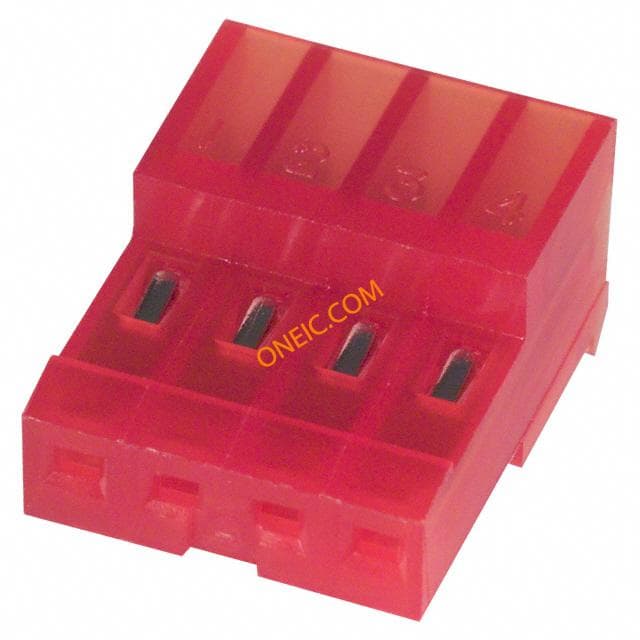

640440-4
