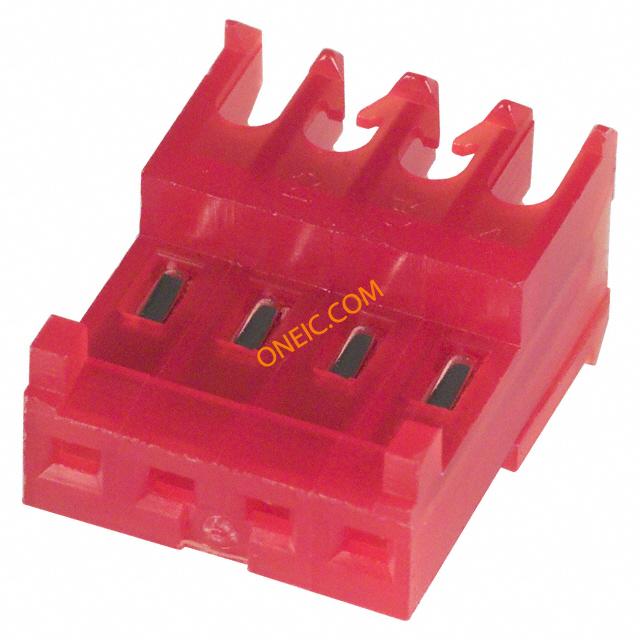

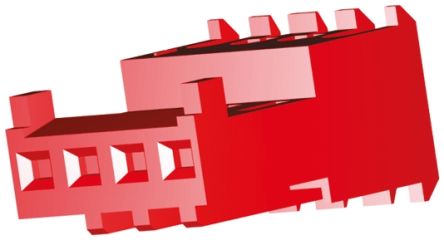

3-644540-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 22AWG MTA100 Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 4POS, 2.54MM MTA-100CONNECTORTIN,04PMTA100CONNASSYF/TW/LCK TE Connectivity MTA-100 系列 4路 2.54mm节距 母 IDC 连接器 , 电缆安装 04P MTA100 CONN ASSY F/T W/LCK |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定交流电压 | 250 |
机械参数
| 颜色 | Red | 间距 | 2.54 mm |
| 重量 | 0.00068 | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 出线方向 | 90° | 导线线规 | 22 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 极化 | Polarizing Tab | 第二连接器 | With |
| 基体材料 | :Nylon | 外壳颜色 | Red |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Feed Thru |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 安装特性 | Without | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 电缆端接方式 | IDC | 配接方向 | With |
| 触点数 | 4 | 接触件端接 | :IDC / IDT |
| 位数 | 4 | 典型触点布局 | 2.54 [0.100] |
| 接触镀层厚度 | 80µin (2.03µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.3-0.4² [22] | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Feed Through, Polarizing Key | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
