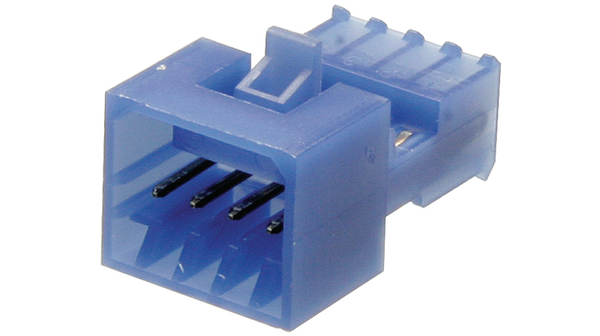

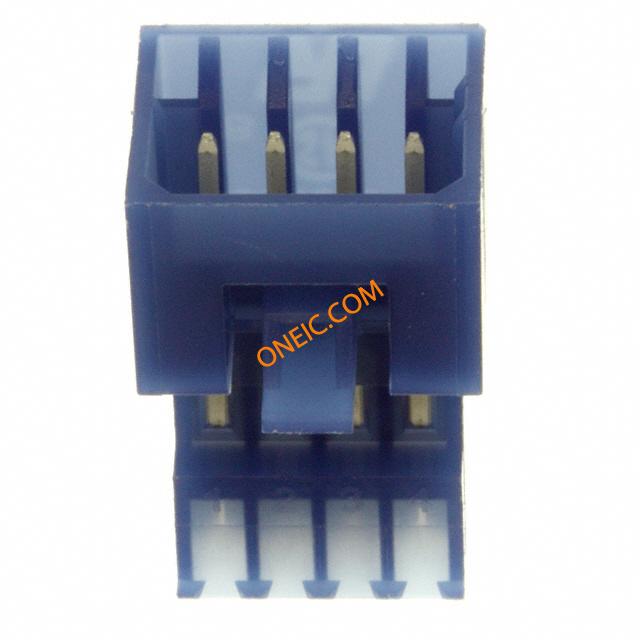

3-647002-4

点击放大查看

3-647002-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG MTA-100 4w IDC posted connector closed end Headers & Wire Housings 04P PSTD RCPT ASSY 4wIDCpostedconnectorclosedend Cable plug, straight 4P, 3-647002-4, TE Connectivity TE Connectivity MTA-100 系列 4路 2.54mm节距 母 IDC 连接器 , 电缆安装 04P MTA100 PSTD CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 V ac极数4
供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5A

机械参数

颜色Blue间距2.54 mm
高度12.55 mm [ .494 in ]长度12.7 mm [ .5 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色10.85
电缆类型分离式导线, 绞线导线线规26 AWG
方向直端接方式IDT
触头类型Male Pin第二连接器Without
外壳颜色Blue安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin
触点时序Without安装样式Wire
排数1壳体镀层Nickel
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
安装特性Without包装数量200
面板安装类型Without主要材料IndustrialRectangular
端接排数IDC电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数4
端接表面处理带有绝缘直径1.52 mm [ .06 in ]
位数4第一连接器极性Male
兼容外壳尺寸（如TM-700等）标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
放大器类型12.70连接类型Wire
跳过的位置数None

环境参数

工作温度+105°C
