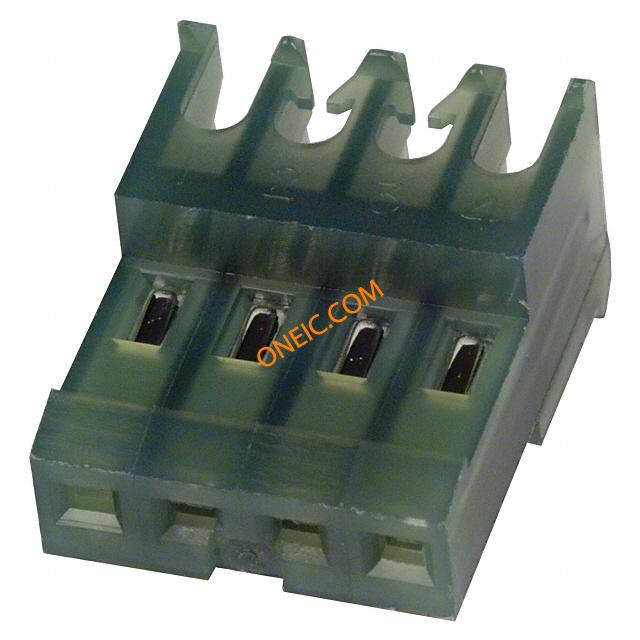

3-640623-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 28AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 4P green tin 28 AWG Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 CONN ASSY GRN LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 VAC | 开关功能 | Ramp Lock |
| 供电电压 | 250 | 额定交流电压 | 250 |
| 连接器阻抗 | IDC | 最大额定电流 | 5 A |
机械参数
| 颜色 | Green | 间距 | 2.54 mm |
| 高度 | 7.75 mm [ .305 in ] | 长度 | 10.16 mm [ .4 in ] |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 白色 |
| 出线方向 | 90° | 电缆类型 | Discrete or Ribbon Cable |
| 导线线规 | 28 AWG | 端接方式 | IDT |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Green |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Feed Thru |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 外壳材料（壳体） | 标准 |
| 连接器用途 | Receptacle | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 安装特性 | Without | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 4 |
| 端接表面处理 | 带有 | 绝缘直径 | 1.52 mm [ .06 in ] |
| 位数 | 4 | 衬套/护套类型 | 不带 |
| 兼容外壳尺寸（如TM-700等） | MTA .100 头和 MTA .100 IDC 柱形连接器 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 2.54 [0.100] |
| 接触镀层厚度 | 80µin (2.03µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.08-0.09² [28] | 静电放电屏蔽 | 带有 |
| 护套（绝缘）厚度 | .762 µm, 30 µin | ||
产品信息
| 备注 | 肋之间的条纹可能会减少 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | MTA-100 |
| 产品特性 | Feed Through | 可密封 | 否 |
| 主要用途 | Feed Through | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 输出配置 | Free Hanging (In-Line) | 跳过的位置数 | None |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
相关型号
2-644486-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings SHROUDED HEADER 4P Straight Post tin Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,04PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 SHRDED HDR ASSY SN
3-641213-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 30AU Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASSYPO/STLF TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASSY PO/ST LF
641214-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 4POS 30AU
3-644694-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .100 TIN Headers & Wire Housings 4P R/A HDR RETENTIVE Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 R/A HDR RETENTIVE
3-647166-4
te connectivity / amp

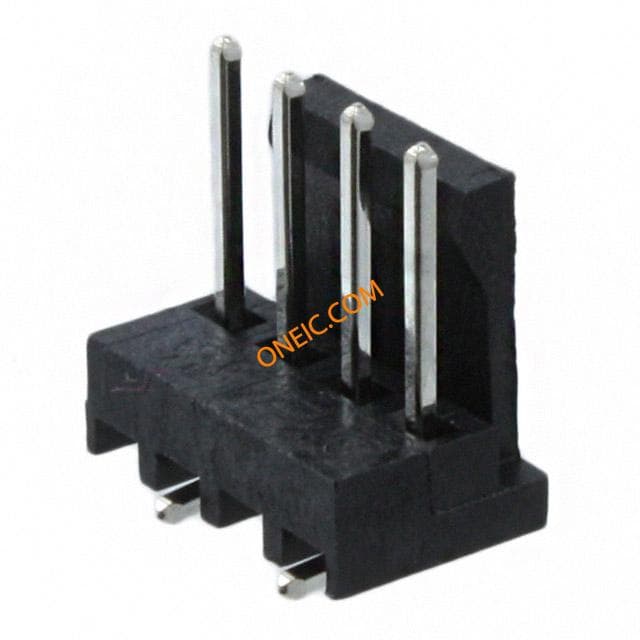

Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD MTA-100 CL Connectors CONN HEADER 4POS VERT .100 TIN Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD Product Highlights:Connector4 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 4P MTA100 HDR ASSY,SM,FL,LF
3-641126-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 04P VRT F-LOCK MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 GOLD Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASYFL/STRLF TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASY FL/STR LF
3-647003-4
te connectivity / amp
Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 28AWG .100 GREEN Headers & Wire Housings 04P MTA100 PSTD CONN ASSY LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 PSTD CONN ASSY LF
641215-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 4POS 30AU Headers & Wire Housings FRICTION LCK HDR 4P Straight Post gold Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASSYFL/ST30AU 04P MTA100 HDR ASSY FL/ST 30AU
647116-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 GOLD Headers & Wire Housings 04P MTA100 HDR HT FL STR 30AU 04P MTA100 HDR HT FL STR 30AU 04P MTA100 HDR HT FL STR 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
647051-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Tube MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .100 TIN
3-647050-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 TIN Headers & Wire Housings HDR 02P VRT F-LOCK HTMP Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 HDR ASSY F/L HITEMP
3-647009-4
te connectivity / amp
Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 24AWG .100 WHITE
3-644695-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings NARROW FLT HDR 4P Strt Post w/ret. leg Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header4 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 STR HDR RETENTIVE
644694-4
TE Connectivity / AMP
Headers & Wire Housings NARROW FLT HDR 4P R.A. Post w/ret. Leg CONN HEADER RTANG 4POS .100 TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644486-4
TE Connectivity / AMP
ヘッダ & ワイヤハウジング SHROUDED HEADER 4P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 4POS TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640455-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .100 TIN Header 4 way pin 2.54mm MTA-100 Headers & Wire Housings POLARIZED HEADER 4P Right Angle Post tin Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM MTA-100HEADER-TIN,04PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 4路 2.54mm节距 (1排) 直角 PCB 针座 , 焊接端接, 5A, 通孔 04P MTA100 HDR ASSY SQ R/A POL
3-644456-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings NARROW FLT HDR 4P Straight Post Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 4WAY, 0.1IN MTA-100HEADER-TIN,04PMTA100HDRASSY(NARROW) TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 引脚管座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASSY (NARROW)
641216-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 4POS 30AU Headers & Wire Housings FRICTION LCK HDR 4P R.A. Post gold Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 HDR ASSY FL/RA 30AU
3-647018-4
te connectivity / amp
Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .100 BLUE Headers & Wire Housings 04P MTA100 PSTD CONN ASSY LF 04P MTA100 PSTD CONN ASSY LF

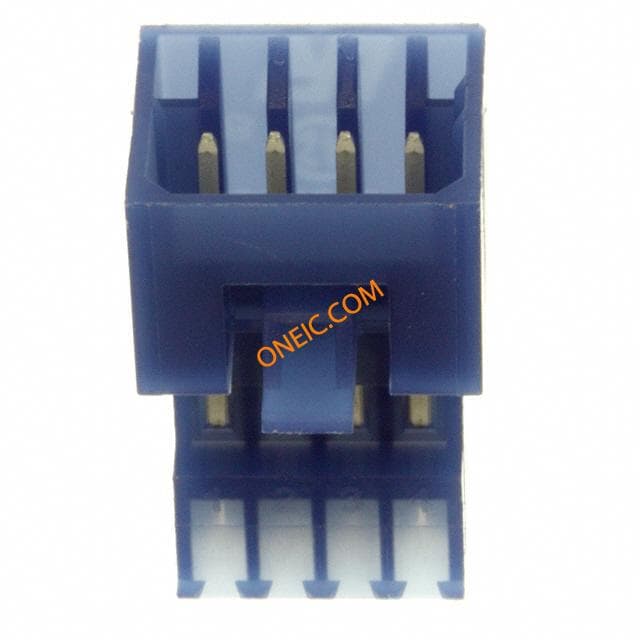

3-647002-4
