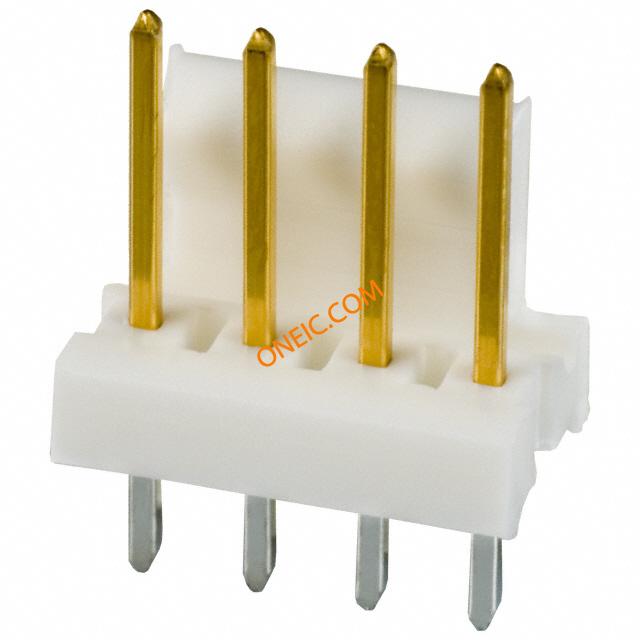

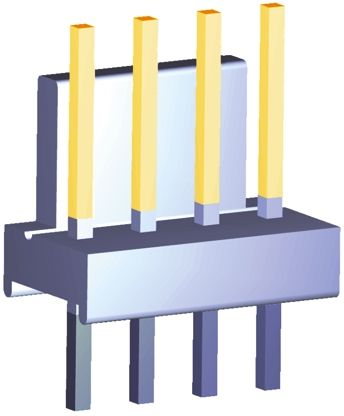

3-641213-4

点击放大查看

3-641213-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 30AU Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASSYPO/STLF TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASSY PO/ST LF
分类
连接器解决方案板对板连接器板对板连接器

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V 交流供电电压250
额定交流电压250连接器阻抗焊接
最大额定电流5A

机械参数

颜色Natural间距2.54 mm
高度7.75 mm [ .305 in ]长度10.16 mm [ .4 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然引脚样式正方形
方向直端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Gold Over Nickel触点时序Without
安装样式不带排数1
外壳材料（壳体）极化连接器用途Header
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester安装特性Without
包装数量1面板安装类型Without
主要材料InterconnectSystem尺寸/外形0.64 [.025]
端接排数焊接端接样式插针
配接方向With触点数4
端接表面处理不带位数4
后壳中断功能Without衬套/护套类型不带
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.56 mm [ .14 in ]
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy端子柱长度3.56 [0.140]
接触镀层厚度30µin (0.76µm)恢复后小径No
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100覆盖范围无覆盖
产品特性Polarizing Key可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
