3-644044-4

点击放大查看

3-644044-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 28AWG .100 GREEN Headers & Wire Housings 04P MTA100 CONN ASSY LF 04P MTA100 CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色Green间距2.54 mm
高度6.99 mm [ .275 in ]长度10.16 mm [ .4 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规28 AWG端接方式IDT
触头类型Female Socket极化Polarizing Tab
第二连接器With外壳颜色Green
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Gold Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数4端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数4
兼容外壳尺寸（如TM-700等）MTA .100 头触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合金
典型触点布局2.54 [0.100]接触镀层厚度30µin (0.76µm)
恢复后小径No线规或范围 - mm²0.08-0.09² [28]
静电放电屏蔽带有护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别RCP系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

3-644044-4?RQPN=3-644044-4

相关型号

2-644486-4

2-644486-4

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings SHROUDED HEADER 4P Straight Post tin Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,04PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 SHRDED HDR ASSY SN

¥2.1960
详情
644457-4

644457-4

TE Connectivity / AMP

Headers & Wire Housings NARROW FLT HDR 4P Right Angle Post CONN HEADER RTANG 4POS .100 TIN

详情

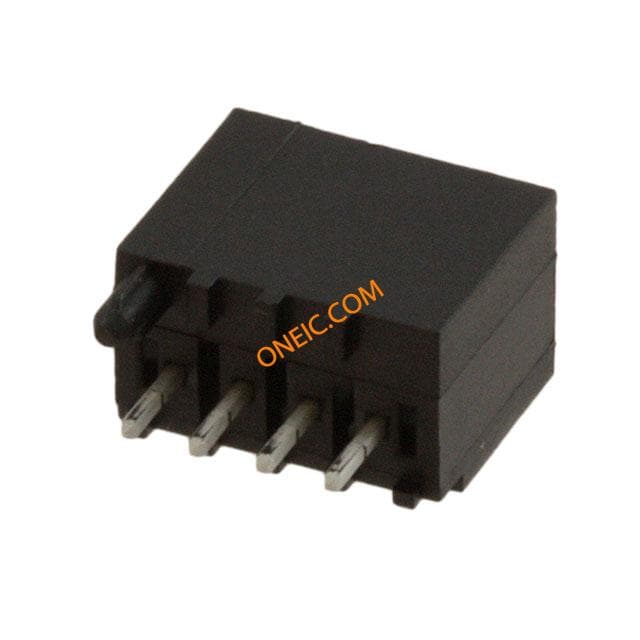

2-644487-4
