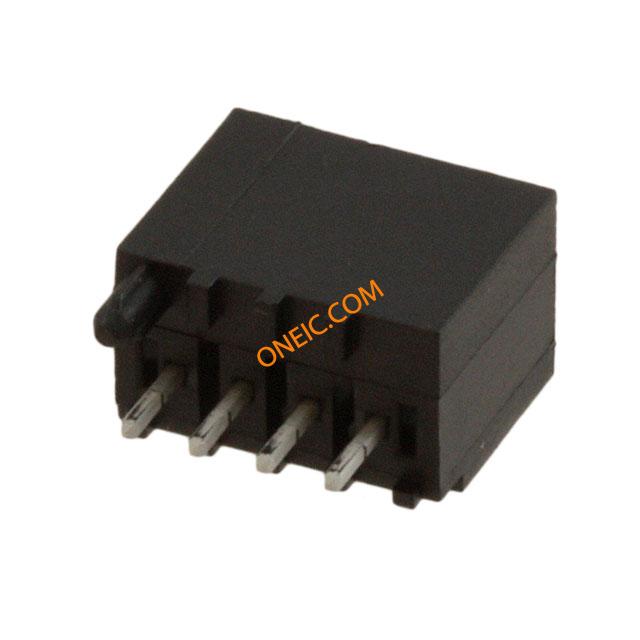

2-644487-4

点击放大查看

2-644487-4

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 GOLD Headers & Wire Housings HDR 04P VRT SHROUD 04P MTA100 SHRD HDR ASSY 30AU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称26444874产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5 A

机械参数

颜色Black间距2.54 mm
高度10.41 mm [ .41 in ]长度12.29 mm [ .484 in ]
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端接方式Solder
触头类型Male Pin极化Polarized Retention Peg
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Header, Shrouded接触镀层Gold Over Nickel
触点时序Without紧固类型Friction Lock
安装样式带有排数1
壳体镀层Tin外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量1750
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数4
端接表面处理不带位数4
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.56 mm [ .14 in ]安装孔直径带有
接触件表面处理 - 配合金典型触点布局同轴
接触长度 - 配合0.200" (5.08mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]接触镀层厚度30µin (0.76µm)
恢复后小径No静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

备注Straight post header style without polarized retention peg available upon reque类型Shrouded Header
连接器性别HDR系列MTA-100
产品特性Board Guide可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
2-644487-4

相关型号

3-641240-4

3-641240-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 28AWG .100 GREEN Headers & Wire Housings 04P MTA100 CONN ASSY GRN LF 04P MTA100 CONN ASSY GRN LF 04P MTA100 CONN ASSY GRN LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥5.4400
详情
3-641243-4

3-641243-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .100 BLUE Headers & Wire Housings 04 CIR MTA-100 CONN BLUE LF Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:4 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04 CIR MTA-100 CONN BLUE LF

¥5.4454
详情
3-641241-4

3-641241-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG .100 RED Headers & Wire Housings 04P MTA100 CONN ASSY RED LF 04P MTA100 CONN ASSY RED LF 04P MTA100 CONN ASSY RED LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥4.5560
详情
3-644020-4

3-644020-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 24AWG .100 WHITE Headers & Wire Housings 04P RECPT 30AU CE Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 Connectors4 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 CONN ASSY 30AU

¥5.2360
详情
3-644043-4

3-644043-4

te connectivity / amp

Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .100 BLUE Headers & Wire Housings 04P MTA100 CONN ASSY LF 04P MTA100 CONN ASSY LF

¥5.6032
详情

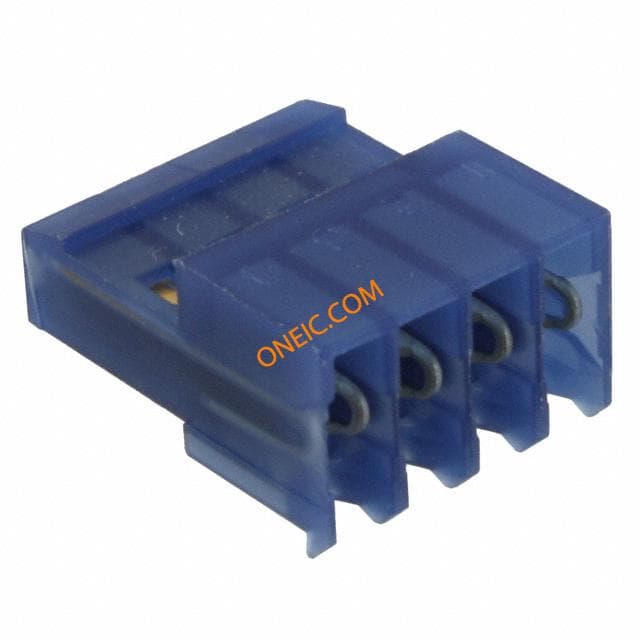

3-641239-4

3-641239-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .100 BLUE Headers & Wire Housings REC 04P C/E 26AWG W/O TABS Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 CONN ASSY BLU LF

¥5.4400
详情
3-644044-4

3-644044-4

te connectivity / amp

Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 28AWG .100 GREEN Headers & Wire Housings 04P MTA100 CONN ASSY LF 04P MTA100 CONN ASSY LF

¥4.4880
详情
3-644726-4

3-644726-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG .100 BLUE Headers & Wire Housings 04P MTA100 CONN ASSY W/TB LF 04P MTA100 CONN ASSY W/TB LF 04P MTA100 CONN ASSY W/TB LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥7.6160
详情
3-641244-4

3-641244-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 28AWG .100 GREEN Headers & Wire Housings 04 CIR MTA-100 CONN GREN LF 04 CIR MTA-100 CONN GREN LF 04 CIR MTA-100 CONN GREN LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.0384
详情
3-644042-4

3-644042-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG .100 RED Headers & Wire Housings 04P MTA100 CONN ASSY LF Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 CONN ASSY LF

¥5.2360
详情

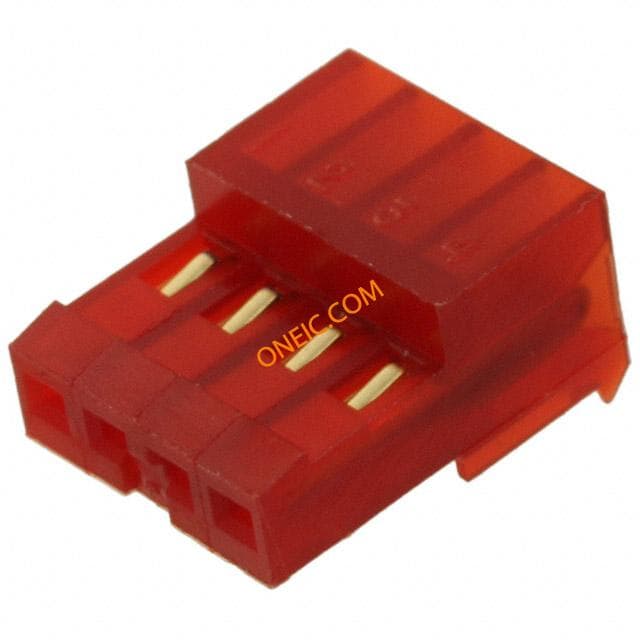

3-641237-4

3-641237-4

te connectivity / amp

Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG .100 RED Headers & Wire Housings REC 04P C/E 22AWG W/O TABS Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Housing4 PositionsPreloadedHousing Gender = ReceptacleContact Gender = ReceptacleSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 CONN ASSY RED 30AU

¥5.2360
详情

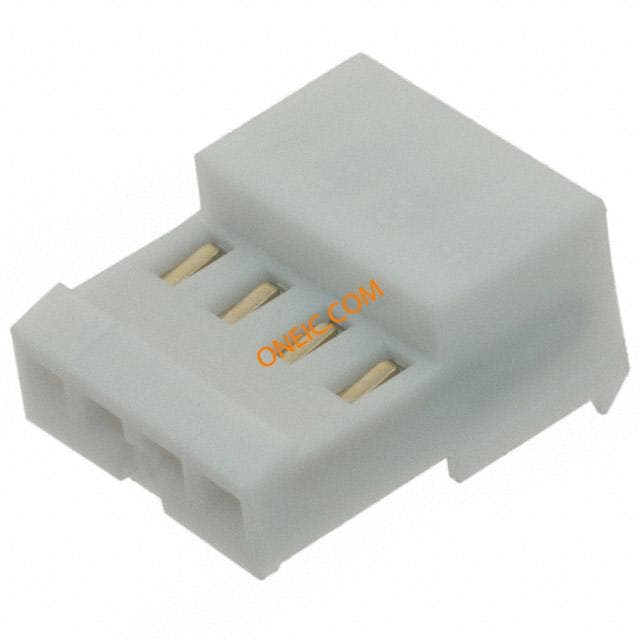

3-641238-4
