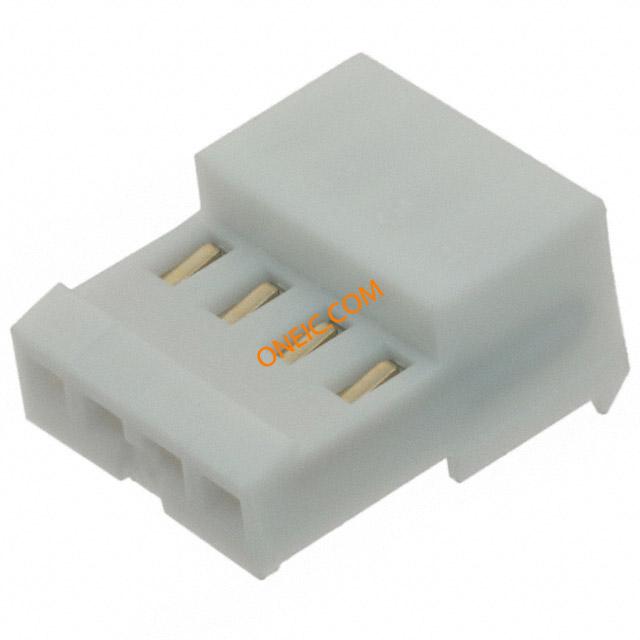

3-641238-4

点击放大查看

3-641238-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 24AWG .100 WHITE Headers & Wire Housings REC 04P C/E 24AWG W/O TABS Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;4;Nylon;CopperAlloy;Gold(30);0.100in.;IDC;White 04P MTA100 CONN ASSY NATL 30AU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称36412384产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5 A最小供电电压250VAC

机械参数

颜色White深度6.99 mm
间距2.54 mm高度13.21 mm
长度10.16包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色出线方向90°
电缆类型分离式导线, 绞线导线线规24 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色White
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Gold Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准连接器用途Receptacle
高度（英寸）6.99插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度10.16 mm安装特性Without
包装数量Loose Piece面板安装类型Without
主要材料InterconnectSystem电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数4
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数4
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度30µin (0.76µm)恢复后小径No
线规或范围 - mm²0.2² [24]静电放电屏蔽带有
护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55C to 105C
