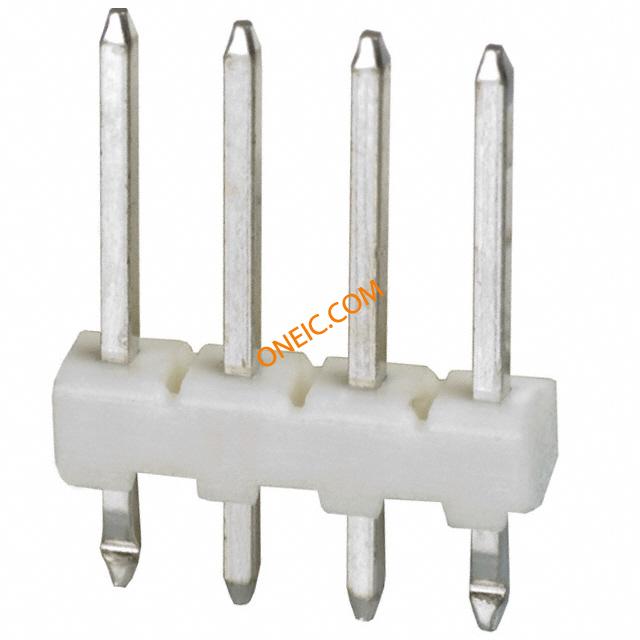

3-644695-4

点击放大查看

3-644695-4

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings NARROW FLT HDR 4P Strt Post w/ret. leg Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header4 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 STR HDR RETENTIVE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
额定交流电压250连接器阻抗焊接
最大额定电流5 A

机械参数

颜色Natural间距2.54 mm
高度10.03 mm [ .395 in ]长度9.86 mm [ .388 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
安装样式带有排数1
壳体镀层Tin外壳材料（壳体）窄
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量500
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数4
端接表面处理不带位数4
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱电源安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)端子柱长度7.49 mm [ .295 in ]
接触镀层厚度150µin (3.81µm)恢复后小径Yes
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

备注2 or 3 retentive leg's per header, depending upon number of positions.类型Unshrouded Header
连接器性别HDR系列MTA-100
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
3-644695-4

相关型号

644540-4

644540-4

te connectivity / amp
