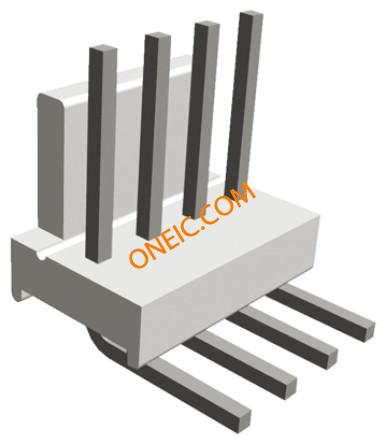

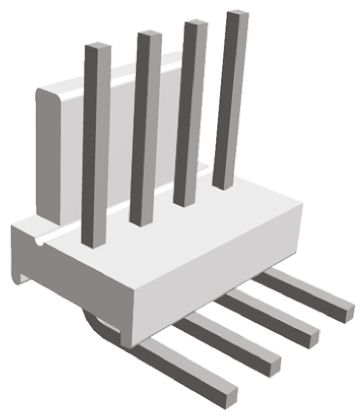

640455-4

点击放大查看

640455-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .100 TIN Header 4 way pin 2.54mm MTA-100 Headers & Wire Housings POLARIZED HEADER 4P Right Angle Post tin Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 2.54MM MTA-100HEADER-TIN,04PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 4路 2.54mm节距 (1排) 直角 PCB 针座 , 焊接端接, 5A, 通孔 04P MTA100 HDR ASSY SQ R/A POL
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量5000

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac额定交流电压250
最大额定电流5A

机械参数

颜色Natural间距2.54 mm
重量0.002包装方式Bulk
遮蔽类型No端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Right Angle连接器类型Header, Unshrouded
接触镀层Tin排数1
连接器用途Header触头材料Copper Alloy
壳体材料Polyester安装特性Without
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向With
触点数4接触件端接:Through Hole Right Angle
位数4后壳中断功能Without
典型触点布局2.54 [0.100]接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy端子柱长度3.56 [0.140]
恢复后小径No

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Polarizing Key
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度+105°C
