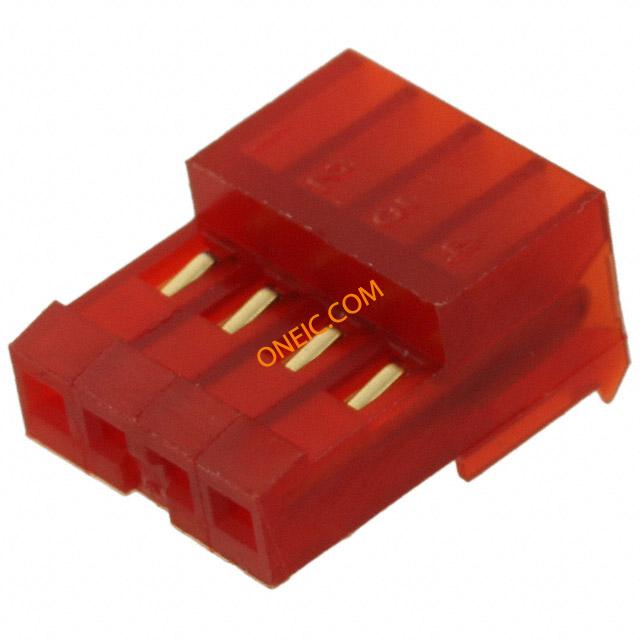

3-641237-4

点击放大查看

3-641237-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG .100 RED Headers & Wire Housings REC 04P C/E 22AWG W/O TABS Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Housing4 PositionsPreloadedHousing Gender = ReceptacleContact Gender = ReceptacleSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 CONN ASSY RED 30AU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称36412374产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Red深度6.99 mm
间距2.54 mm高度13.21 mm
长度10.16包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色出线方向90°
电缆类型Discrete or Ribbon Cable导线线规22 AWG
端接方式IDT触点形式Female Socket
触头类型Female Socket第二连接器With
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Gold Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
连接器用途Receptacle高度（英寸）6.99
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon总长度10.16 mm
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数4
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数4
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度3µin (0.08µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]静电放电屏蔽带有
护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
主要用途Closed End制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
输出配置Free Hanging (In-Line)跳过的位置数None
