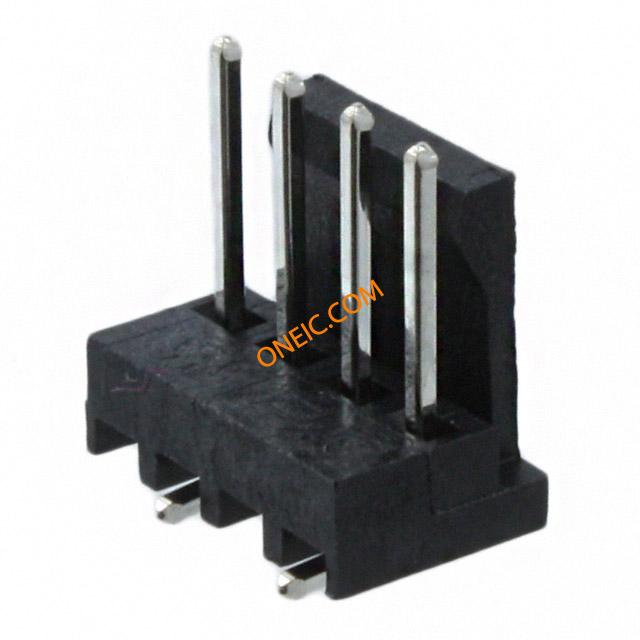

3-647166-4

点击放大查看

3-647166-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD MTA-100 CL Connectors CONN HEADER 4POS VERT .100 TIN Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD Product Highlights:Connector4 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 4P MTA100 HDR ASSY,SM,FL,LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, UL认证机构标志已认证
材料阻燃等级UL 94V-0

电气参数

额定电压250.0供电电压250
接触电阻6 mohm连接器阻抗焊接
最大额定电流5/Contact A最小供电电压250VAC

机械参数

颜色Black深度6.35 mm
间距2.54 mm高度10.54 mm
包装方式Bulk遮蔽类型No
壳体颜色黑色引脚样式正方形
端接方式Solder触头类型Pin
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Header接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式Surface Mount排数1
外壳材料（壳体）摩擦锁连接器样式Plug
插入件材料铜合金锁定特性Friction Lock
触头材料Copper Alloy壳体材料Nylon 4/6
总长度10.16 mm框架材料镍
安装特性Without包装数量500
面板安装类型Without主要材料Copper Alloy
尺寸/外形0.64 [.025]端接样式插针
第一连接器类型不带罩触点数4
端接表面处理不带接触件尾部长度3.81 – 6.3 µm [ 150 – 248.03 µin ]
位数4后壳中断功能Without
中心触点表面处理2.54兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱电源配接堆叠高度With
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.290" (7.37mm)
触点材料 - 柱Copper Alloy表面贴装焊盘尺寸Yes
端子柱长度3.18接触镀层厚度3.81 – 6.3 µm [ 150 – 250 µin ]
恢复后小径No触点材料 - 配合Tin
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100可密封否
产品子类型连接器加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C封装热阻.25 mm [ .01 in ]
