5745081-1

点击放大查看

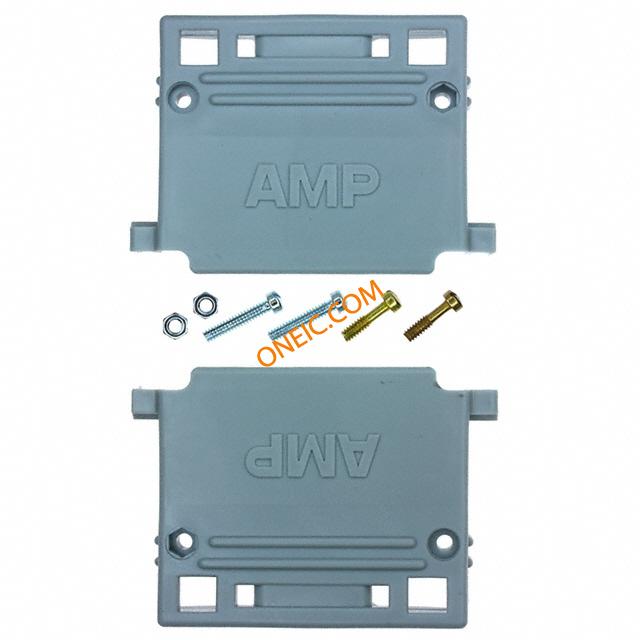

5745081-1

制造商
TE Connectivity Ltd.
描述2 PC STRAIN RELIEF KIT,37P D-Sub Backshells 37P 2PC CABLE CLAMP Cable Clamps CONN BACKSHELL DB37 GRAY PLASTIC AMPLIMITE HDE/HDP backshell kit, size 4 Connector Accessories Shell Bag Connector Accessories Shell Bag Product Highlights:Backshell/Cable ClampCable Clamp Type = Clam ShellStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 17.15 mmShell Size = 4Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Hood;D-Sub;37Pos;Straight/90DegExit;AMP;Thermoplastic;0.675In.CblDia TE Connectivity 37 路 直 热塑性 D-sub 连接器底壳
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Backshells标准包装数量1
工厂包装数量1

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗90, 180

机械参数

颜色Gray深度20.98 mm
外形尺寸(长x宽)4材料（通用）Thermoplastic
包装方式Bulk屏蔽Unshielded
出线方向Straight(180°)/90°电缆类型Round
外壳尺寸4导线线规热塑性
方向直屏蔽类型No
螺纹尺寸4-40安装类型Straight
外壳镀层None线径17.15 mm [ .675 in ]
电缆直径17.15 mm电缆端类型Straight
电缆材料Thermoplastic外壳材料（壳体）Thermoplastic
屏蔽材料无壳体材料Thermoplastic
总长度69.55 mm包装数量Individual Kit
电缆端接方式Clam Shell端接样式夹具外壳
触点数37绝缘直径17.15 [0.675]
位数37衬套/护套类型Without
兼容外壳尺寸（如TM-700等）插头/母端电缆对数1
后壳材料及镀层Thermoplastic

产品信息

备注Straight or 90° cable exit is achieved by inserting AMP-TY Cable Ties through类型Clam Shell
产品特性Assembly Kit, Mating Screws 4-40硬件配件Assembly Hardware
制造商全称AMP产品子类型Backshell/Cable Clamp
附件类型Hinged Backshell

文档与媒体

在线文档
5745081-1?RQPN=5745081-1
PDF 文档
1639165.pdf
