点击放大查看

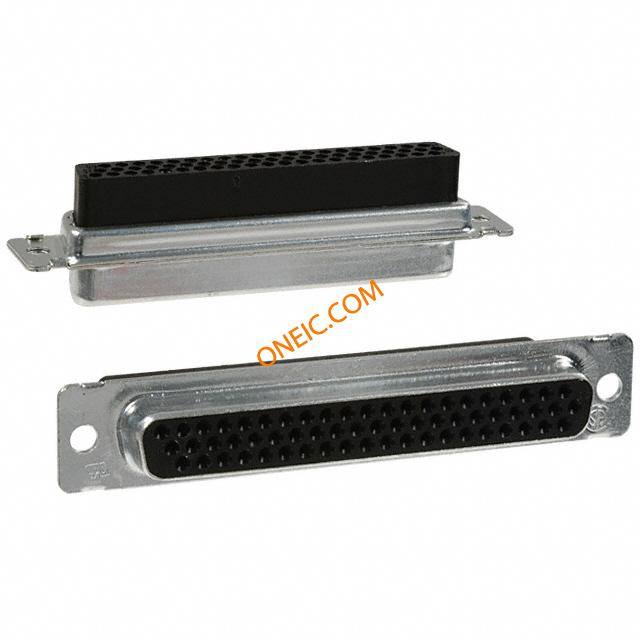

1658684-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 62 POS Crimp ST D-Sub High Density Connectors RECP 62P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 62POS AMPLIMITE HDP22 d-sub cable socket,62way Conn Housing RCP 62 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 62WAY Conn;D-Sub;CableSocket;62Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell HDP22 Series 62 Position Crimp Contact Socket D-Sub Cable Connector TE Connectivity AMPLIMITE HDP-22系列 62路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 4,62 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 VAC | 工作电压 | :250V |
| 接触电阻 | :15mohm | 介电强度 | :1kV |
| 最大额定电流 | :5A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 17.9mm |
| 宽度 | 12.54mm | 高度 | 12.54 mm |
| 长度 | 69.31mm | 重量 | 0.012 |
| 包装方式 | Bulk | 外壳尺寸 | 4 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触头类型 | Signal | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Tin | 安装样式 | Through Hole |
| 排数 | 3 | 壳体镀层 | :Tin |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Thermoplastic | 本体材料 | :Metal |
| 壳体材料 | Nylon | 总长度 | 69.31 mm |
| 包装数量 | 50 | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 62 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 62 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳与棱镜材料 | :Steel | 外壳尺寸，连接器布局 | 4 (DC, C) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDP-22 | CAD图纸 | 3D CAD Model |
| 制造商全称 | HDP-22 | 产品子类型 | Connector |
| 应用细节 | Commercial | 适用产品/相关产品 | :HDP-22 Series D Sub Connectors |
环境参数
| 工作温度 | 105°C | ||
