点击放大查看

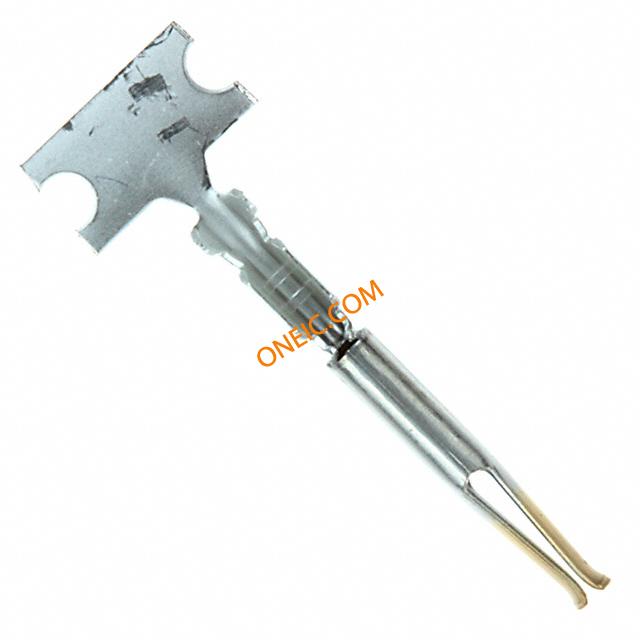

1658686-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 28-22 PHBZ/AU Standard Cable Connectors CONN D-SUB SOCKET 22-28AWG GOLD D-Sub Contacts SKT 28-22 PHBZ/AU Reel of 20000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-22 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-22AWG, CRIMP SOCKET CONTACT,22 DF,STRIP,22- |
| 分类 |
商业参数
| 其他名称 | A31956CT | 产品类别 | D-Sub Contacts |
| 标准包装数量 | 20,000 | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 1 | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Reel |
| 导线线规 | 28-22 | 端接方式 | Crimp |
| 触点尺寸 | 22 | 触头类型 | Stamped / Formed Contacts |
| 插针或插孔 | Socket | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold | 触头材料 | Phosphor Bronze |
| 包装数量 | Strip | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 0.76 â 1.02 [0.030 â 0.040] |
| 镀层厚度（通用） | Flash | 线规或范围 - AWG | 0.08 - 0.40 [28-22] |
产品信息
| 备注 | For Mini Applicator. | 类型 | Stamped |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HD-20 | 产品子类型 | Contact |
| 适用产品/相关产品 | :D Sub Connectors | ||
相关型号
1658681-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST D-Sub High Density Connectors RECP 15P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 15POS AMPLIMITE HDP22 d-sub cable socket,15way Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 15WAY Conn;D-Sub;CableSocket;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 15路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 1,15 POSN
91285-1
te connectivity / amp
Straight Action Hand Tool, Insertion/Extraction Tool D-Sub Tools & Hardware INSERT/EXTRACT TOOL W/6 TIPS & WRENCH INSERTION/EXTRACTION TOOL HDP-22 AMPLIMITE HD20, HD22 insert,extract tool INSERTION/EXTRACTION TOOL INSERTION/EXTRACTIONTOOLFORSZ.20CRIMP&SOLDERCUPCONTACTS Insertion/Extraction Tool Kit Contains 6 Tips With Plug And Hex Wrench Ejector tool, 91285-1, TE Connectivity TE Connectivity AMPLIMITE 系列 拔插件工具 插芯 , 尺寸20, 22 INSERT/EXTRACT TOOL ASSEMBLY
1658683-1
te connectivity / amp
Conn Housing RCP 44 POS Crimp ST D-Sub High Density Connectors RECP 44P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 44POS AMPLIMITE HDP22 d-sub cable socket,44way Conn Housing RCP 44 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 44ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 44WAY Conn;D-Sub;CableSocket;44Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell D-Sub HD; HDP-22; PIN:44; female; w/o terminals TE Connectivity AMPLIMITE HDP-22系列 44路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 3,44 POSN
216166-1
te connectivity / amp
Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44 Terminal 1 Port D-Sub High Density Connectors 44P HDP22 REC ASSY CONN RCPT 44POS CRIMP SNAP METAL Standard Cable Connectors Standard Cable Connectors Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 44ReceptacleWithout Contacts
216167-1
te connectivity / amp
Conn D-Subminiature SKT 62 POS Crimp ST Cable Mount 62 Terminal 1 Port D-Sub High Density Connectors 62P HDP22 REC ASSY CONN RCPT 62POS CRIMP SNAP METAL
5748636-1
te connectivity / amp
Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44Terminal 1Port Bulk D-Sub High Density Connectors KIT RCPT 44P HDP-22 SHLD HDWRE Standard Cable Connectors CONN KIT HD D-SUB RCPT 44POS 5748636-1 Conn Housing RCP 44 POS Crimp ST Bulk Conn Housing RCP 44 POS Crimp ST Bulk Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)44 PositionsWith EnclosureShieldedSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,RCPT,44P,HDP-22,SHLD HDWRE
5788816-1
te connectivity / amp
Conn D-Subminiature F 26 POS ST D-Sub High Density Connectors RCPT 26P HDP-22 CN RCPT 26P SZ 2 HDP-22 Standard Cable Connectors CONN RCPT 26POS CRIMP SNAP TIN Conn Housing RCP 26 POS Crimp ST Cable Mount Conn Housing RCP 26 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TE Connectivity HDP-22系列 26路 直 压接式 D-sub 连接器, 插座 RCPT ASSY,26P,HDP-22,CN
1658687-1
te connectivity / amp
Conn Housing RCP 26 POS Crimp ST Bulk D-Sub High Density Connectors DSUB A26S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 26POS W/O CONT AMPLIMITE HDP-22 Receptacle+Shield 26P D-Sub Standard Connectors DSUB A26S CRIMP KIT Conn Housing RCP 26 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 26POS, STEEL Conn;D-Sub;CableSocket;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingHDWRKit HDP22 Series 26 Position Shielding Hardware Socket Metal Kit D-Sub HDP-22,OVRMLD,RCPT KIT,SIZE 2,
216164-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST D-Sub High Density Connectors 15P HDP22 RECP SZ 1 CONN RCPT 15POS CRIMP SNAP METAL AMPLIMITE HDP22 d-sub cable socket,15way D-Sub Standard Connectors 15P HDP22 RECP SZ 1 Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ReceptacleWithout Contacts RECEPTACLE KIT, 15 WAY Connector,HDP-22,housing,recp,size2 TE Connectivity AMPLIMITE HDP-22系列 15路 直 压接式 D-sub 连接器, 插座
216168-1
te connectivity / amp
Conn D-Subminiature SKT 78 POS Crimp ST Cable Mount 78 Terminal 1 Port D-Sub High Density Connectors 78P HDP22 REC ASSY Standard Cable Connectors CONN RCPT 78POS CRIMP SNAP METAL
5748641-1
te connectivity / amp
Conn Housing RCP 44 POS Crimp ST Bulk D-Sub Standard Connectors KIT RCPT 44P HDP-22 SHLD ENCLS Standard Cable Connectors CONN KIT HD D-SUB RECEPT 44POS AMPLIMITE HDP22 Receptacle+Enclosure 44P Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44Terminal 1Port Bulk Conn Housing RCP 44 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)44 PositionsShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;44Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit KIT,RCPT,44P,HDP-22,SHLD ENCLSRE
1658689-1
te connectivity / amp
Conn Housing RCP 26 POS Crimp ST Bulk D-Sub High Density Connectors DSUB A26S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 26POS W/O CONT AMPLIMITE HDP22 Receptacle+Enclosure 26P D-Sub Receptacle; Steel; Female; 2; Tin D-Sub Standard Connectors DSUB A26S CRIMP KIT Conn Housing RCP 26 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit KIT,HDP-22,ENCLSUR,RCPT,SIZE 2
1658685-1
te connectivity / amp
Conn Housing RCP 78 POS Crimp ST D-Sub High Density Connectors RECP 78P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 78POS AMPLIMITE HDP-22 d-sub cable socket,5way Conn Housing RCP 78 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 78ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, HIGH DENSITY Conn;D-Sub;CableSocket;78Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 78路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 5,78 POSN
1658690-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST D-Sub High Density Connectors DSUB E15S CRIMP Standard Cable Connectors CONN RECEPT D-SUB 15POS W/C-NUTS AMPLIMITE HDP22 d-sub cable socket,15way Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 15路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 1,15 POSN,CLI
1658688-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST Cable Mount Bulk D-Sub High Density Connectors DSUB E15S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 15POS W/O CONT AMPLIMITE HDP22 Receptacle+Enclosure 15P D-Sub Standard Connectors DSUB E15S CRIMP KIT Conn Housing RCP 15 POS Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 15POS, STEEL Conn;D-Sub;CableSocket;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit HDP22 Series 15 Position Shielding Hardware Socket Metal Kit D-Sub KIT,HDP-22,ENCLSUR,RCPT,SIZE 1
5748634-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST Bulk D-Sub High Density Connectors E15S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 15POS W/O CONT AMPLIMITE HDP20 d-sub socket kit, 15 way Conn Housing RCP 15 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, FEMALE Conn;D-Sub;CableSocket;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingHDWRKit HDP22 Series 15 Position Crimp Contact Shielded Hardware Socket Metal Kit D-Sub TE Connectivity AMPLIMITE HDP-20 15触点 KIT,RCPT,15P,HDP-22,SHLD HDWRE
5748642-1
te connectivity / amp
Conn D-Subminiature SKT 62 POS Crimp ST Cable Mount 62Terminal 1Port Bulk D-Sub Standard Connectors DSUB C62S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 62POS W/O CONT AMPLIMITE HDP22 Receptacle+Enclosure 62P D-Sub Receptacle; Steel; Female; 4; Tin D-Sub Standard Connectors HPD-22 62P 22C D-SUB RCPT CRIMP KIT Conn Housing RCP 62 POS Crimp ST Bulk Conn Housing RCP 62 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;62Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit HDP22 Series 62 Position Crimp Contact Shielded Hardware Socket Metal Kit D-Sub KIT,RCPT,62P,HDP-22,SHLD ENCLS
1658682-1
te connectivity / amp
Conn Housing RCP 26 POS Crimp ST D-Sub High Density Connectors RECP 26P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 26POS AMPLIMITE HDP22 d-sub cable socket,26way Conn Housing RCP 26 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 26WAY Conn;D-Sub;CableSocket;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 26路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 2,26 POSN
1658684-1
te connectivity / amp
Conn Housing RCP 62 POS Crimp ST D-Sub High Density Connectors RECP 62P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 62POS AMPLIMITE HDP22 d-sub cable socket,62way Conn Housing RCP 62 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 62WAY Conn;D-Sub;CableSocket;62Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell HDP22 Series 62 Position Crimp Contact Socket D-Sub Cable Connector TE Connectivity AMPLIMITE HDP-22系列 62路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 4,62 POSN

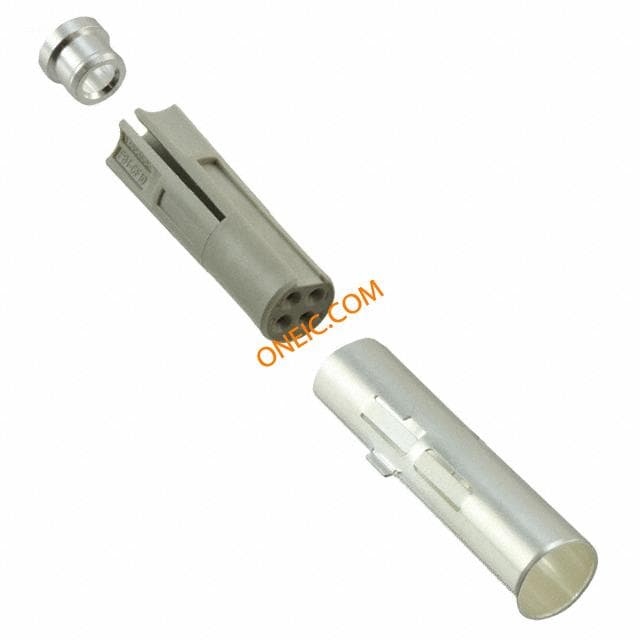

1103427-1
