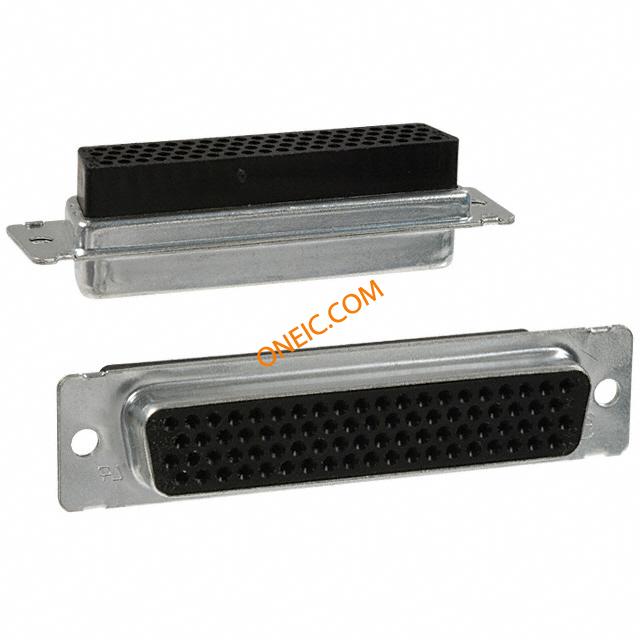

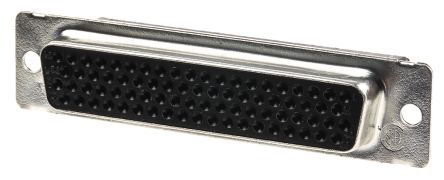

1658685-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 78 POS Crimp ST D-Sub High Density Connectors RECP 78P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 78POS AMPLIMITE HDP-22 d-sub cable socket,5way Conn Housing RCP 78 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 78ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, HIGH DENSITY Conn;D-Sub;CableSocket;78Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 78路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 5,78 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 225 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 15.37mm |
| 宽度 | 6.17mm | 高度 | 15.36 mm |
| 长度 | 66.93mm | 重量 | 3.47 |
| 包装方式 | Bulk | 外壳尺寸 | 5 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触头类型 | Signal | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Through Hole | 排数 | 4 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Thermoplastic | 本体材料 | :Metal |
| 触头材料 | Phosphor Bronze | 壳体材料 | Steel |
| 总长度 | 66.92 mm | 包装数量 | 50 |
| 主要材料 | D-Subminiature | 尺寸/外形 | 66.93 x 6.17 x 15.37mm |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 78 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 78 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 5 (DD, D) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDP-22 | 制造商全称 | HDP-22 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-22 Series D Sub Connectors | ||
环境参数
| 工作温度 | +105°C | ||
