点击放大查看

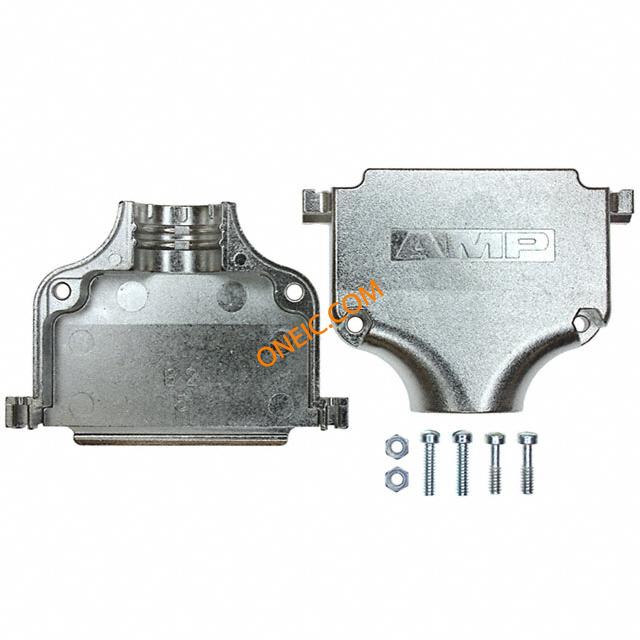

5745175-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 50 POS D-Sub Backshell/Cable Clamp Kit Die Cast Bright Nickel Over Copper Shell Size 5 Individual D-Sub Backshells DSUB ACC: D CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB50 DIE CAST Backshell/Cable Clamp 180° 5 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 180° 5 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 17.15 mmShell Size = 5Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 5, ZINC ALLOY DIECASTSTRREL-KIT,CABLECLAMPKIT,SZ5 TE Connectivity AMPLIMITE 系列 50 路 直 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 5 |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
机械参数
| 颜色 | Silver | 重量 | 0.1 |
| 镀层 | Nickel over Copper | 材料（通用） | Metal, Zinc Alloy |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 5 | 外壳材料（壳体） | Die Cast |
| 本体材料 | :Zinc Alloy | 位数 | 50 |
| 外壳尺寸-插件 | :DD | 外部壳体材料 | :Steel |
产品信息
| 类型 | Backshell/Cable Clamp Kit | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 附件类型 | Two Piece Backshell | 射频系列/标准 | 5745175 |
| 适用产品/相关产品 | 745175-2 | ||
