1658686-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SKT CNT SIZE 22 Standard Cable Connectors CONN D-SUB SOCKET 22-28AWG GOLD Gold socket crimp contact,22-28awg 5A Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-22 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP SOCKET, D, 28-22AWG HDP-22HIGHDENSITYD-SUB;SOCKETFORRECEPT. HDP22 Series 22-28 AWG 30 Gold Crimp Socket D-Sub Contact Crimp Contact, 1658686-2, TE Connectivity TE Connectivity AMPLIMITE HDP-22系列 尺寸22触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 22 AWG SOCKET CONT, 22-28 AWG, DF 22, AMPLIMITE |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | :15mohm | 最大额定电流 | :5A |
机械参数
| 深度 | 1.91 mm | 间距 | Not Required mm |
| 重量 | 0.005 | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Bulk |
| 导线线规 | 28-22 | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点尺寸 | 22 |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel|Gold Over Palladium Nickel Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 14.73 mm | 包装数量 | Loose Piece |
| 主要材料 | Contact | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件尾部长度 | 22 |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 0.76 â 1.02 [0.030 â 0.040] |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | 0.08 - 0.40 [28-22] |
| 线规或范围 - mm² | :0.4mm² | 触点材料 - 镀层 | Gold(30)μ |
| 外径-未扩张 | :0.63mm | ||
产品信息
| 备注 | For Hand Tool | 类型 | Stamped |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HD-20 | 制造商全称 | AMPLIMITEHDP-22Series |
| 产品子类型 | Contact | 端口数 | 1 Port |
| 适用产品/相关产品 | :AMPLIMITE HDP-22 Connectors | ||
相关型号
1658681-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST D-Sub High Density Connectors RECP 15P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 15POS AMPLIMITE HDP22 d-sub cable socket,15way Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 15WAY Conn;D-Sub;CableSocket;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 15路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 1,15 POSN
91285-1
te connectivity / amp
Straight Action Hand Tool, Insertion/Extraction Tool D-Sub Tools & Hardware INSERT/EXTRACT TOOL W/6 TIPS & WRENCH INSERTION/EXTRACTION TOOL HDP-22 AMPLIMITE HD20, HD22 insert,extract tool INSERTION/EXTRACTION TOOL INSERTION/EXTRACTIONTOOLFORSZ.20CRIMP&SOLDERCUPCONTACTS Insertion/Extraction Tool Kit Contains 6 Tips With Plug And Hex Wrench Ejector tool, 91285-1, TE Connectivity TE Connectivity AMPLIMITE 系列 拔插件工具 插芯 , 尺寸20, 22 INSERT/EXTRACT TOOL ASSEMBLY
1658683-1
te connectivity / amp
Conn Housing RCP 44 POS Crimp ST D-Sub High Density Connectors RECP 44P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 44POS AMPLIMITE HDP22 d-sub cable socket,44way Conn Housing RCP 44 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 44ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 44WAY Conn;D-Sub;CableSocket;44Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell D-Sub HD; HDP-22; PIN:44; female; w/o terminals TE Connectivity AMPLIMITE HDP-22系列 44路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 3,44 POSN
216166-1
te connectivity / amp
Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44 Terminal 1 Port D-Sub High Density Connectors 44P HDP22 REC ASSY CONN RCPT 44POS CRIMP SNAP METAL Standard Cable Connectors Standard Cable Connectors Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 44ReceptacleWithout Contacts
216167-1
te connectivity / amp
Conn D-Subminiature SKT 62 POS Crimp ST Cable Mount 62 Terminal 1 Port D-Sub High Density Connectors 62P HDP22 REC ASSY CONN RCPT 62POS CRIMP SNAP METAL
90800-2
te connectivity / amp
Connector Accessories Crimp Die Set Punches & Dies DIE ASSEMBLY DIE SET HI-DEN D-SUB CRIMP CONT SDE Die Set, AMPLIMITE 22 DF DIE, SDE HDP-22 AMP;DIESETONLY;DSUB22DFPINANDSOCKET;28-20AWG Crimping dies, 90800-2, TE Connectivity DIE ASSEMBLY
5748636-1
te connectivity / amp
Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44Terminal 1Port Bulk D-Sub High Density Connectors KIT RCPT 44P HDP-22 SHLD HDWRE Standard Cable Connectors CONN KIT HD D-SUB RCPT 44POS 5748636-1 Conn Housing RCP 44 POS Crimp ST Bulk Conn Housing RCP 44 POS Crimp ST Bulk Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)44 PositionsWith EnclosureShieldedSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,RCPT,44P,HDP-22,SHLD HDWRE
5788816-1
te connectivity / amp
Conn D-Subminiature F 26 POS ST D-Sub High Density Connectors RCPT 26P HDP-22 CN RCPT 26P SZ 2 HDP-22 Standard Cable Connectors CONN RCPT 26POS CRIMP SNAP TIN Conn Housing RCP 26 POS Crimp ST Cable Mount Conn Housing RCP 26 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TE Connectivity HDP-22系列 26路 直 压接式 D-sub 连接器, 插座 RCPT ASSY,26P,HDP-22,CN
90800-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER TL/DIE TOOL CRIMP HI-DEN D-SUB W/DIE HDP22/HD22 ratchet action crimping tool CRIMP TOOL, HDP22 Crimper;Ratchet;28-22AWG;AMPLIMITEHDContacts;90800-2Die;PRO-CRIMPERIII Crimping tool, 90800-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 AMPLIMITE HD-22 Contacts 压接工具 , 适用于28 → 22 AWG 线规格 PROCRIMPER TOOL & DIE
1658687-1
te connectivity / amp
Conn Housing RCP 26 POS Crimp ST Bulk D-Sub High Density Connectors DSUB A26S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 26POS W/O CONT AMPLIMITE HDP-22 Receptacle+Shield 26P D-Sub Standard Connectors DSUB A26S CRIMP KIT Conn Housing RCP 26 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 26POS, STEEL Conn;D-Sub;CableSocket;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingHDWRKit HDP22 Series 26 Position Shielding Hardware Socket Metal Kit D-Sub HDP-22,OVRMLD,RCPT KIT,SIZE 2,
216164-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST D-Sub High Density Connectors 15P HDP22 RECP SZ 1 CONN RCPT 15POS CRIMP SNAP METAL AMPLIMITE HDP22 d-sub cable socket,15way D-Sub Standard Connectors 15P HDP22 RECP SZ 1 Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ReceptacleWithout Contacts RECEPTACLE KIT, 15 WAY Connector,HDP-22,housing,recp,size2 TE Connectivity AMPLIMITE HDP-22系列 15路 直 压接式 D-sub 连接器, 插座
216168-1
te connectivity / amp
Conn D-Subminiature SKT 78 POS Crimp ST Cable Mount 78 Terminal 1 Port D-Sub High Density Connectors 78P HDP22 REC ASSY Standard Cable Connectors CONN RCPT 78POS CRIMP SNAP METAL
5748641-1
te connectivity / amp
Conn Housing RCP 44 POS Crimp ST Bulk D-Sub Standard Connectors KIT RCPT 44P HDP-22 SHLD ENCLS Standard Cable Connectors CONN KIT HD D-SUB RECEPT 44POS AMPLIMITE HDP22 Receptacle+Enclosure 44P Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44Terminal 1Port Bulk Conn Housing RCP 44 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)44 PositionsShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;44Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit KIT,RCPT,44P,HDP-22,SHLD ENCLSRE
1658685-1
te connectivity / amp
Conn Housing RCP 78 POS Crimp ST D-Sub High Density Connectors RECP 78P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 78POS AMPLIMITE HDP-22 d-sub cable socket,5way Conn Housing RCP 78 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 78ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, HIGH DENSITY Conn;D-Sub;CableSocket;78Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 78路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 5,78 POSN
1658688-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST Cable Mount Bulk D-Sub High Density Connectors DSUB E15S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 15POS W/O CONT AMPLIMITE HDP22 Receptacle+Enclosure 15P D-Sub Standard Connectors DSUB E15S CRIMP KIT Conn Housing RCP 15 POS Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 15POS, STEEL Conn;D-Sub;CableSocket;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit HDP22 Series 15 Position Shielding Hardware Socket Metal Kit D-Sub KIT,HDP-22,ENCLSUR,RCPT,SIZE 1
5748642-1
te connectivity / amp
Conn D-Subminiature SKT 62 POS Crimp ST Cable Mount 62Terminal 1Port Bulk D-Sub Standard Connectors DSUB C62S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 62POS W/O CONT AMPLIMITE HDP22 Receptacle+Enclosure 62P D-Sub Receptacle; Steel; Female; 4; Tin D-Sub Standard Connectors HPD-22 62P 22C D-SUB RCPT CRIMP KIT Conn Housing RCP 62 POS Crimp ST Bulk Conn Housing RCP 62 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;62Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit HDP22 Series 62 Position Crimp Contact Shielded Hardware Socket Metal Kit D-Sub KIT,RCPT,62P,HDP-22,SHLD ENCLS
91520-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT HD22 TOOL CERTA CRIMP II AMPLIMITE Crimper,SAHTRatchet,28-26AWG,D-Sub,AMP Crimper;SAHTRatchet;28-26AWG;D-Sub;AMPLIMITEHD-22Contacts;CERTI-CRIMPII Crimping tool, 91520-1, TE Connectivity CERTICRIMP 2,SAHT HD 22
1658682-1
te connectivity / amp
Conn Housing RCP 26 POS Crimp ST D-Sub High Density Connectors RECP 26P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 26POS AMPLIMITE HDP22 d-sub cable socket,26way Conn Housing RCP 26 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 26WAY Conn;D-Sub;CableSocket;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 26路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 2,26 POSN
1658684-1
te connectivity / amp
Conn Housing RCP 62 POS Crimp ST D-Sub High Density Connectors RECP 62P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING RECEPT 62POS AMPLIMITE HDP22 d-sub cable socket,62way Conn Housing RCP 62 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 62ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, HIGH DENSITY, 62WAY Conn;D-Sub;CableSocket;62Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell HDP22 Series 62 Position Crimp Contact Socket D-Sub Cable Connector TE Connectivity AMPLIMITE HDP-22系列 62路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 4,62 POSN

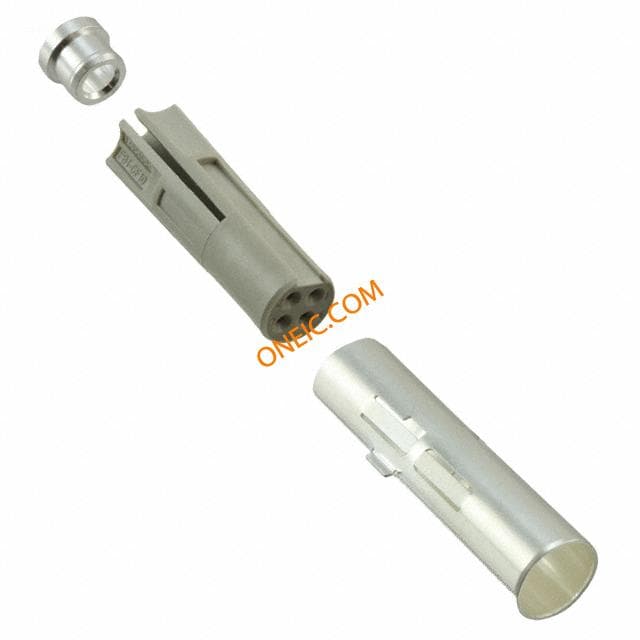

1103427-1
