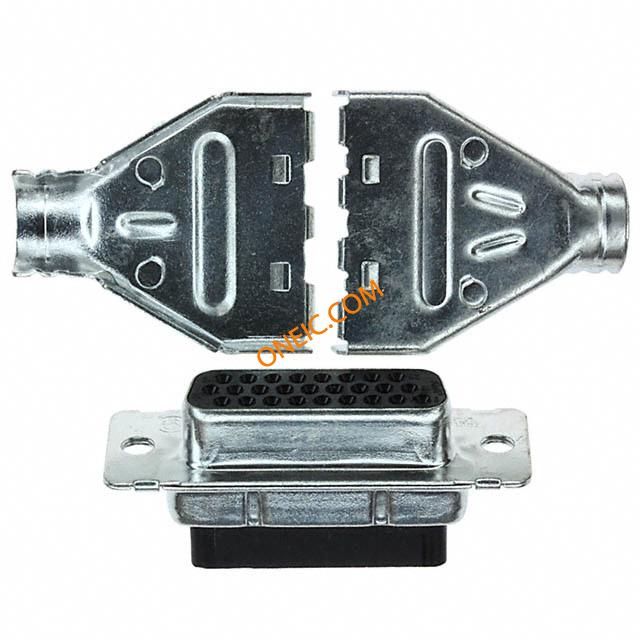

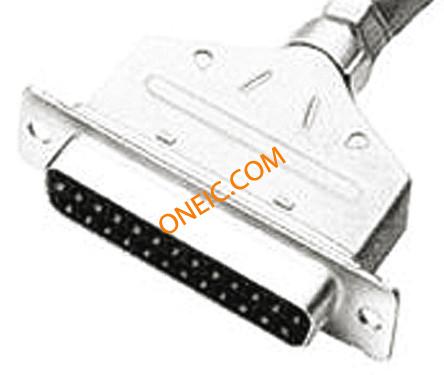

1658687-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 26 POS Crimp ST Bulk D-Sub High Density Connectors DSUB A26S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 26POS W/O CONT AMPLIMITE HDP-22 Receptacle+Shield 26P D-Sub Standard Connectors DSUB A26S CRIMP KIT Conn Housing RCP 26 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 26POS, STEEL Conn;D-Sub;CableSocket;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingHDWRKit HDP22 Series 26 Position Shielding Hardware Socket Metal Kit D-Sub HDP-22,OVRMLD,RCPT KIT,SIZE 2, |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | ||
电气参数
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 高度 | 12.54 mm |
| 重量 | 0.014 | 包装方式 | Bulk |
| 外壳尺寸 | 2 | 导线线规 | 22 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Thermoplastic | 本体材料 | :Metal |
| 屏蔽材料 | Steel | 壳体材料 | Metal |
| 总长度 | 39.14 mm | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 触点数 | 26 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 26 |
| 外壳尺寸-插件 | :2 | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | HDP-22 |
| 产品特性 | Shielded | 制造商全称 | HDP-22 |
| 适用产品/相关产品 | :HDP-22 Crimp Snap Contacts | ||
环境参数
| 工作温度 | -55C to 105C | ||
