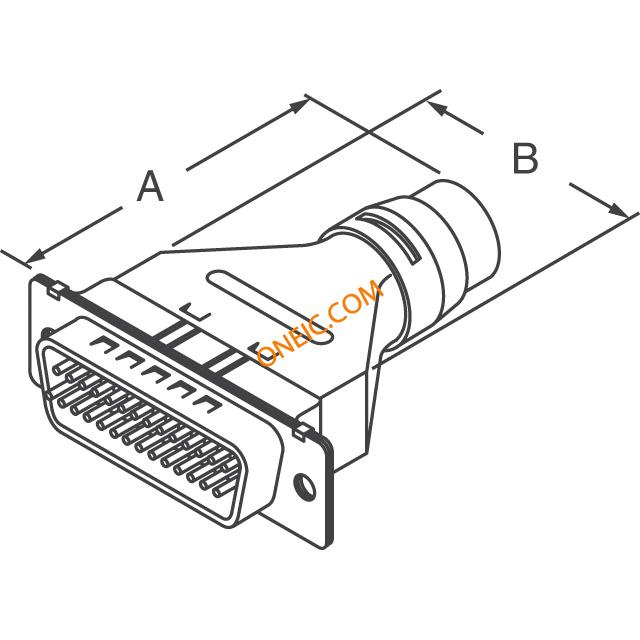

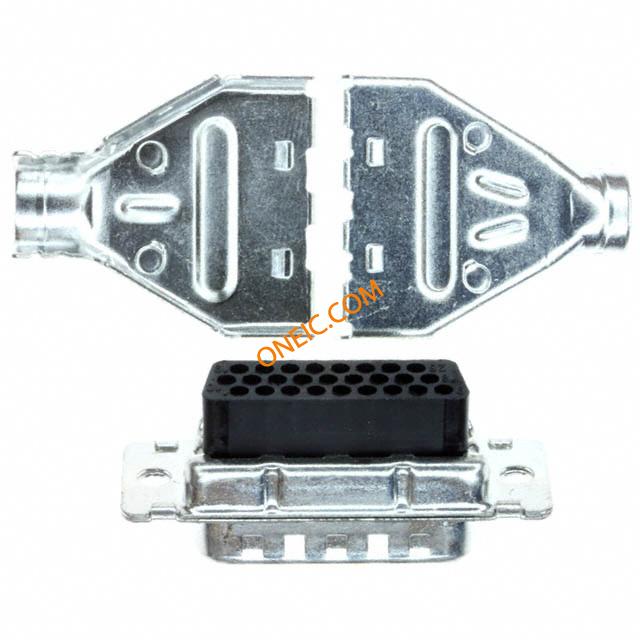

1658676-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 26 POS 2.28mm Crimp ST Bulk D-Sub High Density Connectors DSUB A26P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 26POS W/O CONT AMPLIMITE HDP-22 cable Plug+Shield 26P D-Sub Standard Connectors DSUB A26P CRIMP KIT Conn Housing PL 26 POS 2.28mm Crimp ST Cable Mount Bulk Conn Housing PL 26 POS 2.28mm Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 2, STEEL Conn;D-Sub;CablePlug;26Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingHDWRKit HDP-22,OVRMLD,PLUG KIT,SIZE 2, |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | ||
电气参数
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 39.39 mm |
| 间距 | 2.28 mm | 高度 | 12.92 mm |
| 重量 | 0.009 | 包装方式 | Bulk |
| 外壳尺寸 | 2 | 导线线规 | 22 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Plug for Male Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Thermoplastic | 本体材料 | :Metal |
| 屏蔽材料 | Steel | 壳体材料 | Metal |
| 总长度 | 39.75 mm | 主要材料 | D-Subminiature |
| 端接样式 | Solder | 触点数 | 26 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 26 |
| 外壳尺寸-插件 | :2 | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | HDP-22 |
| 产品特性 | Grounding Indents, Shielded | 制造商全称 | HDP-22 |
| 适用产品/相关产品 | :HDP-22 Crimp Snap Contacts | ||
环境参数
| 工作温度 | -55C to 105C | ||
