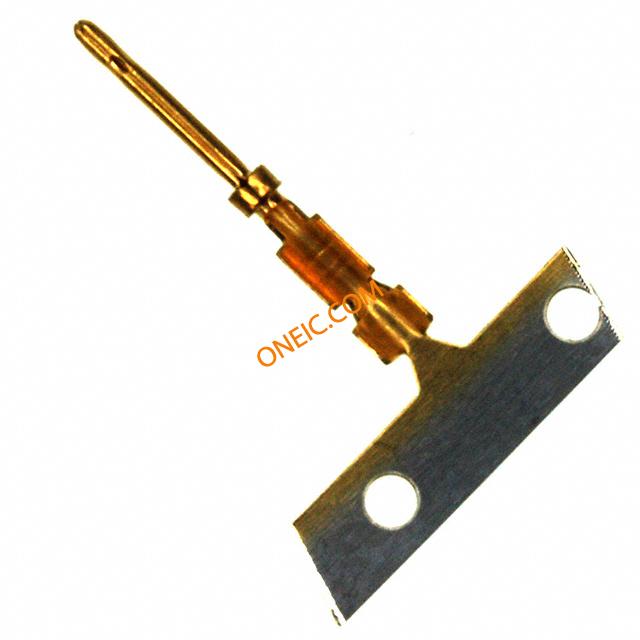

66556-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts PIN 22-28 AWG 30AU Standard Cable Connectors CONN PIN 22-28 AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HD 22Contact Type = PinBrass Contact Base MaterialWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 15000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 包装方式 | Reel | 导线线规 | 22-28 AWG |
| 端接方式 | Crimp | 触点形式 | Machined |
| 触点尺寸 | 22 | 触头类型 | Power |
| 插针或插孔 | Pin | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel | 触头材料 | Brass |
| 包装数量 | Strip | 绝缘高度 | Yes |
| 第一触头极性 | Pin (Male) | 端接表面处理 | Gold |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 0.76 â 1.02 [0.030 â 0.040] |
| 接触镀层厚度 | Flash | 线规或范围 - AWG | 0.08 - 0.40 [28-22] |
| 端接镀层厚度 | Flash | ||
产品信息
| 备注 | For Mini Applicator. | 类型 | Signal |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HD 22 | 产品特性 | Insulation Support |
| 产品子类型 | Contact | ||
