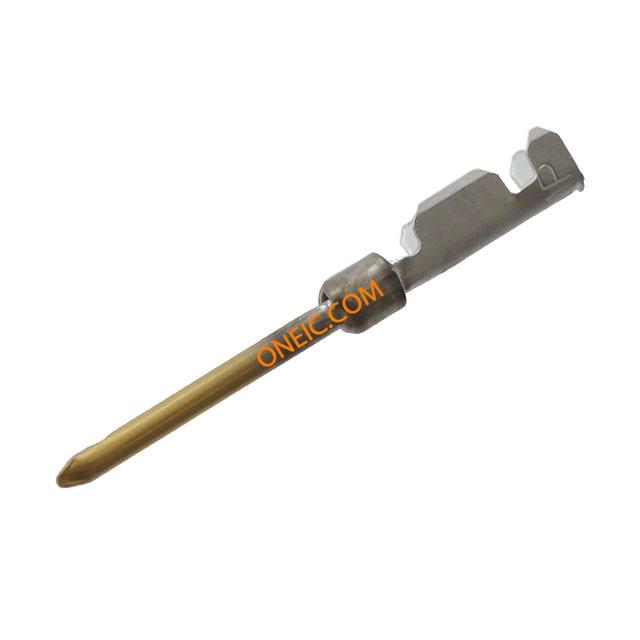

1658670-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece D-Sub High Density Connectors PIN 22-28 AWG 30 AU Standard Cable Connectors CONN PIN 22-28AWG CRIMP 30GOLD D-Sub Contacts PIN 22-28 AWG 30 AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-22 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, PIN, 28-22AWG, CRIMP CONT,PIN,PLATED,22DF,LP,#22-28,SM-PAK |
| 分类 |
商业参数
| 其他名称 | 16586705 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 绝缘类型 | Insulated | 导线线规 | 22-28 AWG |
| 端接方式 | Crimp | 触点形式 | Stamped |
| 触点尺寸 | 22 | 触头类型 | Male Pin |
| 引脚直径 | 0.76 [0.030] | 插针或插孔 | Pin |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 包装数量 | Loose Piece |
| 绝缘高度 | Yes | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 接触件端接 | Crimp Snap-In |
| 绝缘直径 | 0.76 â 1.02 [0.030 â 0.040] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 0.08 - 0.40 [28-22] | ||
产品信息
| 备注 | For Hand Tool | 类型 | Signal |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDP-22 | 产品特性 | Insulation Support |
| 产品子类型 | Contact | 适用产品/相关产品 | :D Sub Connectors |
