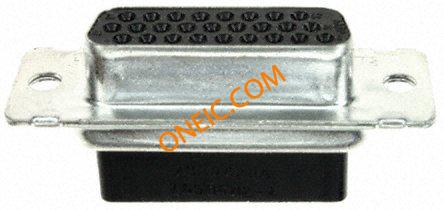

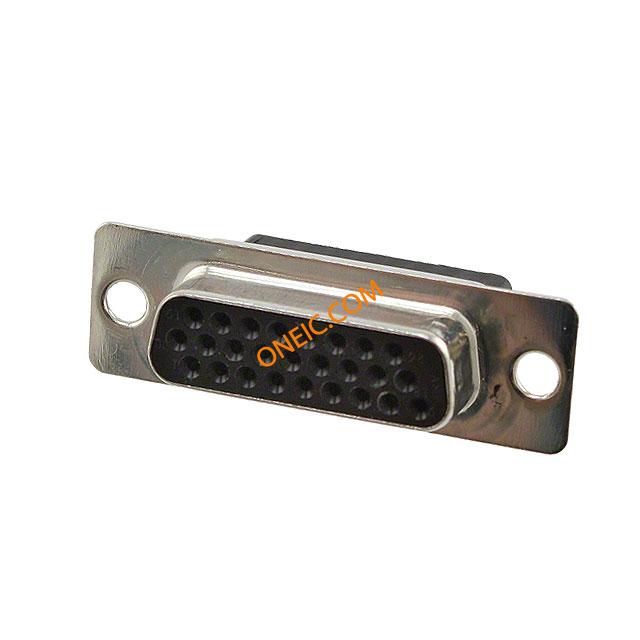

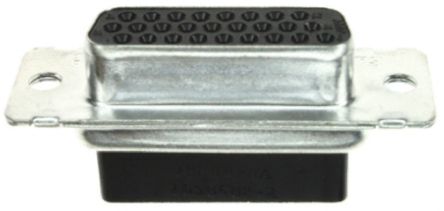

216165-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 26 POS Crimp ST Cable Mount D-Sub High Density Connectors 26P HDP22 REC ASSY Standard Cable Connectors CONN RCPT 26POS CRIMP SNAP METAL AMPLIMITE HDP22 d-sub cable socket,26way Conn Housing RCP 26 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ReceptacleWithout Contacts CONNECTOR, HOUSING, HD D SUB, 26POS, RCPT TE Connectivity AMPLIMITE HDP-22系列 26路 D-sub 连接器底壳 |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 深度 | 12.5 mm |
| 高度 | 12.5 mm | 重量 | 0 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 触点尺寸 | 22 | 触头类型 | Signal |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Bright Tin |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Polyamide, GV | 壳体材料 | Steel |
| 总长度 | 39.1 mm | 接地凹痕 | Without |
| 触点数 | 26 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 26 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDP-22 (Crimp Snap) | 产品子类型 | Connector |
| 适用产品/相关产品 | :HDP-22 Crimp Snap Contacts | ||
