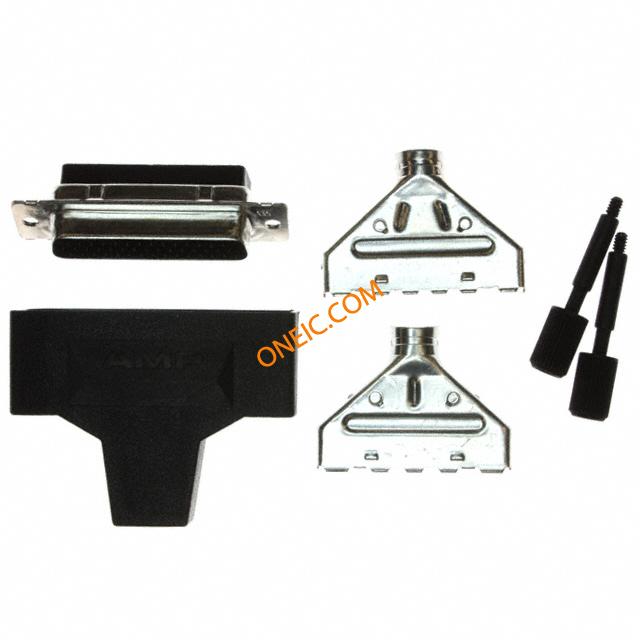

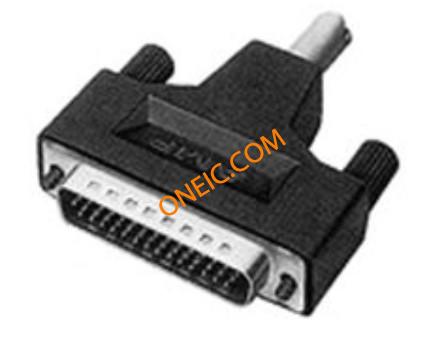

5748641-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 44 POS Crimp ST Bulk D-Sub Standard Connectors KIT RCPT 44P HDP-22 SHLD ENCLS Standard Cable Connectors CONN KIT HD D-SUB RECEPT 44POS AMPLIMITE HDP22 Receptacle+Enclosure 44P Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44Terminal 1Port Bulk Conn Housing RCP 44 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)44 PositionsShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;44Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit KIT,RCPT,44P,HDP-22,SHLD ENCLSRE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 连接器阻抗 | 锁紧螺钉, 锁紧螺钉 | ||
机械参数
| 颜色 | Black | 高度 | 0.63 in |
| 外形尺寸(长x宽) | 3 | 包装方式 | Bulk |
| 屏蔽 | 是 | 外壳尺寸 | 3 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳表面处理 | 锡 |
| 第二连接器 | With | 安装类型 | Straight |
| 外壳镀层 | Tin | 端子尺寸 | 22 |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Cable Side (4-40) | 安装样式 | Wire |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, High Density | 插入件材料 | Thermoplastic |
| 屏蔽材料 | Steel | 壳体材料 | PVC |
| 包装数量 | 1 | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 44 | 介电材料 | Thermoplastic |
| 位数 | 44 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 触点材料 - 镀层 | 玻璃纤维尼龙 |
| 护套（绝缘）材料 | Zinc Alloy | 外壳尺寸，连接器布局 | 3 (DB, B) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | 标准 | 连接器性别 | RCP |
| 系列 | HDP-22 | 产品特性 | Backshell, Shielded |
| 制造商全称 | HDP-22 | 产品子类型 | 连接器 |
| 其他规格 | 5.51 – 11.05 mm [ .217 – .435 in ] | ||
