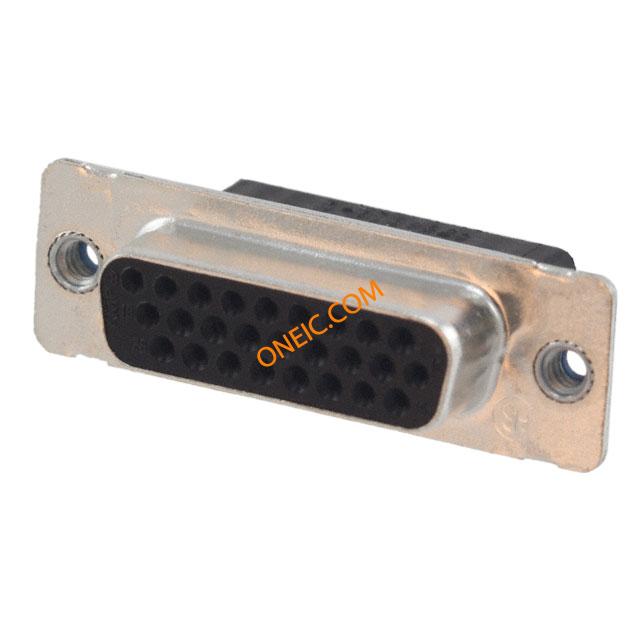

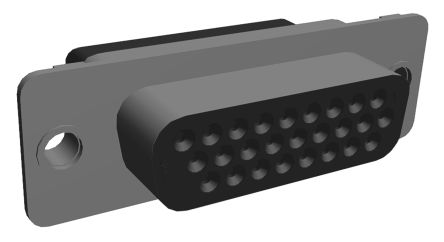

5788816-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature F 26 POS ST D-Sub High Density Connectors RCPT 26P HDP-22 CN RCPT 26P SZ 2 HDP-22 Standard Cable Connectors CONN RCPT 26POS CRIMP SNAP TIN Conn Housing RCP 26 POS Crimp ST Cable Mount Conn Housing RCP 26 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 26ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TE Connectivity HDP-22系列 26路 直 压接式 D-sub 连接器, 插座 RCPT ASSY,26P,HDP-22,CN |
| 分类 |
商业参数
| 其他名称 | 57888161 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V 交流 | 连接器阻抗 | 箝紧螺母，4-40 UNC |
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 宽度 | 17.9mm | 高度 | 12.55 mm |
| 长度 | 39.14mm | 外形尺寸(长x宽) | 2 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 方向 | 直 | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 端子尺寸 | 22 |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Board Side (4-40) |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, High Density | 插入件材料 | Thermoplastic |
| 锁定特性 | Clinch Nut, 4-40 UNC | 壳体材料 | Thermoplastic |
| 总长度 | 39.14 mm | 包装数量 | 50 |
| 尺寸/外形 | 39.14 x 17.9 x 12.55mm | 接地凹痕 | Without |
| 触点数 | 26 POS | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 26 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 触点材料 - 镀层 | 热塑性 |
| 外壳尺寸，连接器布局 | 2 (DA, A) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | F |
| 系列 | HDP-22 (Crimp Snap) | 产品子类型 | Connector |
环境参数
| 工作温度 | +105°C | ||
