点击放大查看

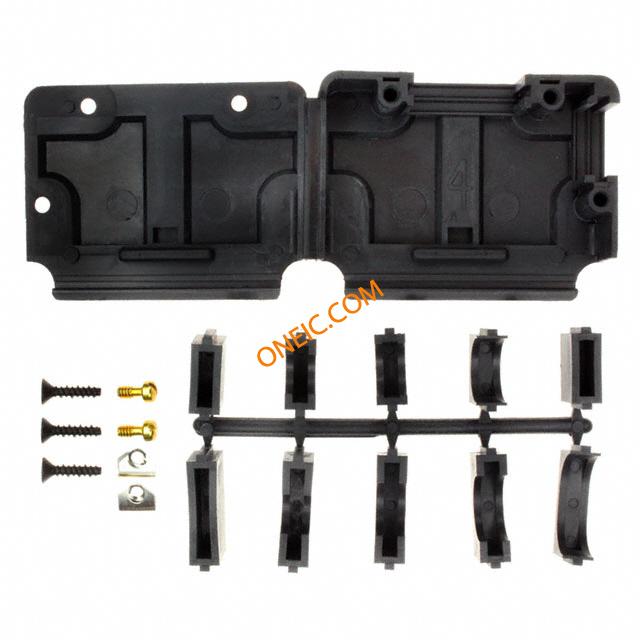

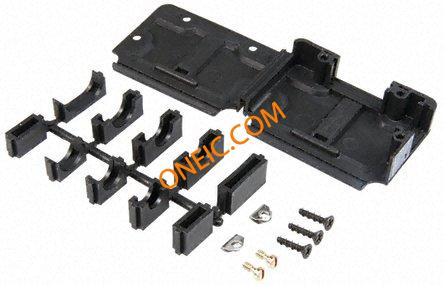

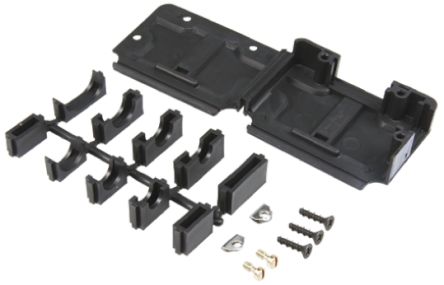

1-5207908-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Male Strain Relief Cable Clamp Kit Screw Thermoplastic Black D-Sub Backshells CABLE CLAMP SIZE 4 CONN BACKSHELL DB37 PLASTIC AMPLIMITE HD-20 backshell kit, size 4 Backshell/Cable Clamp 90�/180� 4 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 4 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 4 Shell Size Thermoplastic Individual Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 4, THERMOPLASTIC Hood;D-Sub;37Pos;Straight/90Deg;HD-20Series;Thermoplastic;0.490InCblDia TE Connectivity 37 路 D-sub 连接器底壳 KIT S/R SCREW RET 90/180 DEG |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 73182300 |
机械参数
| 颜色 | Black | 重量 | 0.023 |
| 材料（通用） | Polypropylene | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | 90°, 180° |
| 电缆类型 | Round | 外壳尺寸 | 4 |
| 电缆直径 | 0.490In. | 电缆端类型 | Variable Entries |
| 外壳材料（壳体） | Thermoplastic | 本体材料 | :Thermoplastic |
| 位数 | 37 | 电缆对数 | 2 |
| 后壳材料及镀层 | Thermoplastic | ||
产品信息
| 类型 | Strain Relief | 系列 | HD-20 |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 制造商全称 | HD-20Series | 附件类型 | Hinged Backshell |
| 射频系列/标准 | 5207908 | 适用产品/相关产品 | 1-207908-0 |
