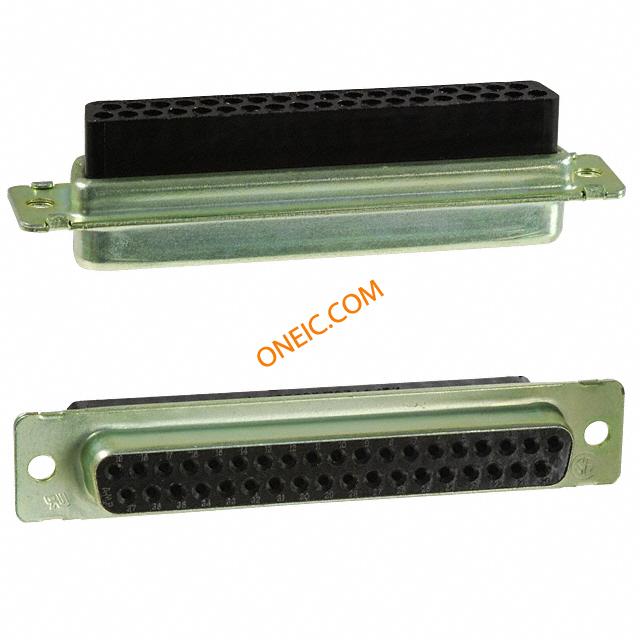

205209-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 37 POS Crimp ST D-Sub Standard Connectors 37P SOCKET ZINC Standard Cable Connectors CONN D-SUB HOUSING RECEPT 37POS AMPLIMITE HDP20 d-sub cable socket,37way Conn Housing RCP 37 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 37ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;37Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 37路 直 压接式 D-sub 连接器, 插座 RECP ASSY SIZE 4 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 连接器阻抗 | 安装孔 |
| 最大额定电流 | 3.7/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 宽度 | 6.17mm | 高度 | 12.54 mm |
| 长度 | 69.32mm | 外形尺寸(长x宽) | 4 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 外壳尺寸 | 4 | 导线线规 | 18-28 AWG |
| 方向 | 直 | 端接方式 | Crimp |
| 触点形式 | Signal | 触点尺寸 | 20 |
| 触头类型 | Signal | 外壳表面处理 | 锌 |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Zinc |
| 端子尺寸 | 20 | 行程角度 | Straight |
| 连接器类型 | Crimp Snap | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Zinc |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 屏蔽材料 | 钢 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Steel | 总长度 | 69.31 mm |
| 包装数量 | 300 | 主要材料 | D-Subminiature |
| 尺寸/外形 | 69.32 x 6.17 x 12.55mm | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 37 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 37 |
| 外壳尺寸-插件 | Full Metal Shell | 兼容外壳尺寸（如TM-700等） | 压接扣入式 |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Yellow Trivalent Chromium Chromate Zinc Plated |
| 触点材料 - 镀层 | 热塑性 | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 备注 | Receptacles accept size 20 DF socket contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 输出配置 | Free Hanging (In-Line) |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | +105°C | ||
