制造商	TE Connectivity Ltd.

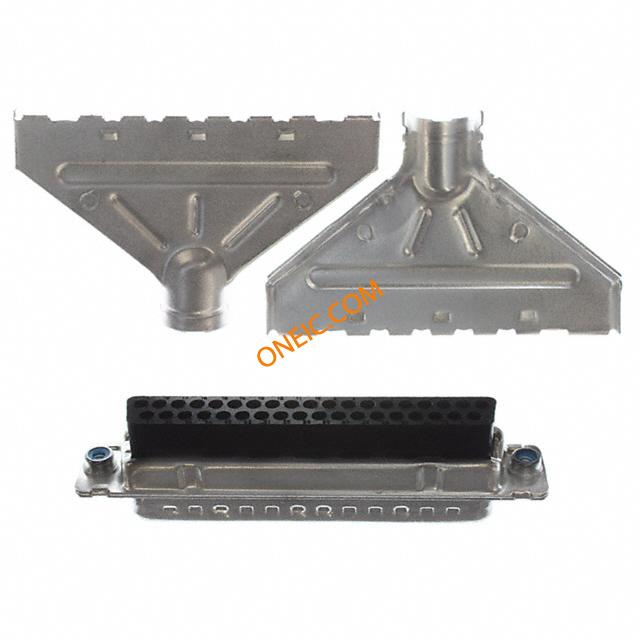

描述	Conn D-Subminiature PL 37 POS Crimp Bulk D-Sub Standard Connectors KIT PLUG 37P HDP-20 SHLD HDWRE Standard Cable Connectors CONN KIT PLUG SHIELDED 37POS Standard Cable Connectors Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)37 PositionsShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,PLUG,37P,HDP-20,SHLD HDWRE
分类	连接器解决方案D-Sub连接器

商业参数

标准包装规格	1	产品类别	D-Sub Standard Connectors
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94V-0

电气参数

连接器阻抗

箝紧螺母，4-40 UNC

机械参数

颜色	Black	外形尺寸(长x宽)	4
包装方式	Bulk	屏蔽	是
壳体颜色	黑色	端接方式	Crimp
触头类型	Signal	外壳表面处理	铜镀锡
第二连接器	With	安装类型	Free Hanging (In-Line)
端子尺寸	20	连接器类型	Plug for Male Contacts
法兰特征	Board Side (4-40)	排数	2
连接器样式	D-Sub	屏蔽材料	钢
壳体材料	尼龙 GF	包装数量	1
接地凹痕	With	触点数	37 POS
介电材料	Polyamide (PA), Nylon, Glass Filled	位数	37
外壳尺寸-插件	Full Metal Shell	外壳镀层厚度	200µin (5.08µm)
外壳材料及表面处理	Steel, Tin Plated	触点材料 - 镀层	玻璃填充 PBT/尼龙
外壳尺寸，连接器布局	4 (DC, C)

产品信息

备注	Contacts Not Provided	类型	D-Subminiature
等级	标准	连接器性别	PL
产品特性	Backshell, Grounding Indents, Shielded	产品子类型	连接器
其他规格	8.59 – 14.28 mm [ .338 – .562 in ]
