1658541-1

点击放大查看

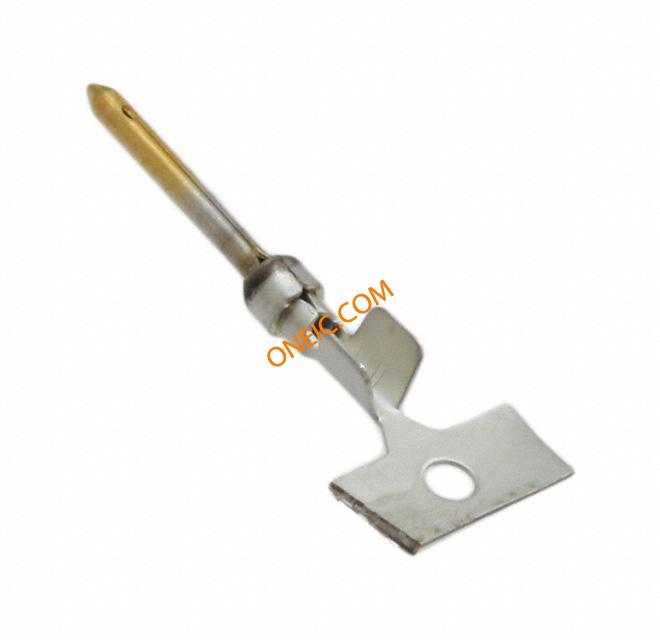

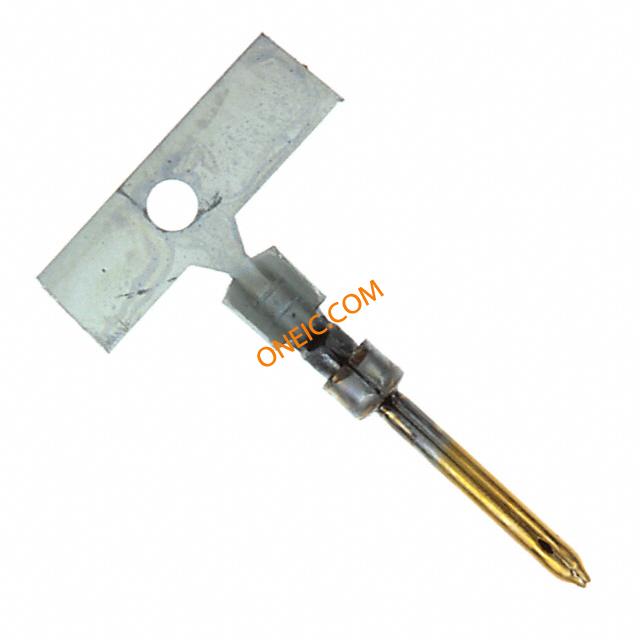

1658541-1

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts PIN CONTACT PLTD Standard Cable Connectors CONN PIN 18-22AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Range = 0.4 - 0.8 [22-18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONT DUPL PLT STRIP HD-20
分类
连接器解决方案接触件接触件（通用）

商业参数

其他名称A31923CT产品类别D-Sub Contacts
标准包装数量Tape & Reel工厂包装数量10000

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

输入端.068连接器阻抗压接

机械参数

镀层Gold材料（通用）Brass
包装方式Reel导线线规22-18
端接方式Crimp触点尺寸20
触头类型Power引脚直径1.02 [0.040]
插针或插孔Pin端子尺寸20
连接器类型Connector D-Subminiature接触镀层Gold Over Palladium Nickel|Gold Over Nickel
插入件材料黄铜触头材料Brass
壳体材料压接扣入式包装数量Strip
绝缘高度No端接样式Crimp
第一触头极性Pin (Male)连接器颜色是
接触件端接Crimp Snap-In镀层厚度（通用）Flash
接触件表面处理 - 配合绿色接触镀层厚度30
线规或范围 - AWG0.4 - 0.8 [22-18]

产品信息

备注Wire insulation diameter is limited by the connector housing cavity and clearan类型Stamped
等级Standard连接器性别PIN
系列HDP-20 (Crimp Snap)产品子类型Contact
