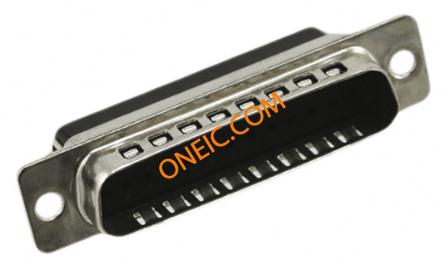

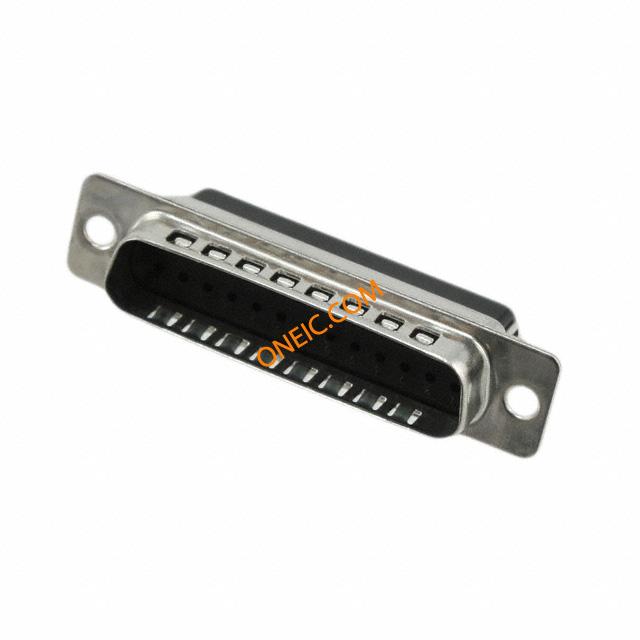

215488-1

制造商	TE Connectivity Ltd.
描述	Conn Housing PL 25 POS Crimp ST D-Sub Standard Connectors 25P.HDP20 PLUG ASSY Standard Cable Connectors CONN PLUG 25POS CRIMP SNAP AMPLIMITE HDP-20 d-sub cable plug,25 pin Conn Housing PL 25 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, HOUSING, D SUB, PLUG, 25 POS AMPLIMITEHDP-20d-subcableplug,25pin
分类	连接器解决方案D-Sub连接器

商业参数

标准包装数量

Bulk

工厂包装数量

合规参数

RoHS	RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-0

机械参数

颜色	Black	深度	17.6mm
宽度	12.5mm	长度	53mm
重量	0	包装方式	Bulk
外壳尺寸	3	触点尺寸	20
触头类型	Signal	第二连接器	With
安装类型	Straight	外壳镀层	Tin
连接器类型	Crimp Snap	接触镀层	Tin
法兰特征	Housing/Shell (Unthreaded)	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub
插入件材料	Nylon	锁定特性	Mounting Holes
本体材料	:Steel	壳体材料	Nylon
接地凹痕	With	触点数	25
介电材料	Polyamide (PA), Nylon, Glass Filled	位数	25
外壳尺寸-插件	Front Metal Shell	外壳材料及表面处理	Steel, Tin Plated
外壳尺寸，连接器布局	3 (DB, B)

产品信息

备注	With Grounding Tab and Grounding Finger	类型	Housing
等级	Standard	连接器性别	PL
系列	HDP-20 (Crimp Snap)	产品子类型	Connector
适用产品/相关产品	:HDP-20 Series Crimp Snap-In Contacts
