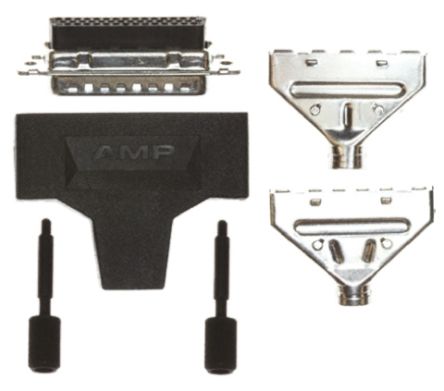

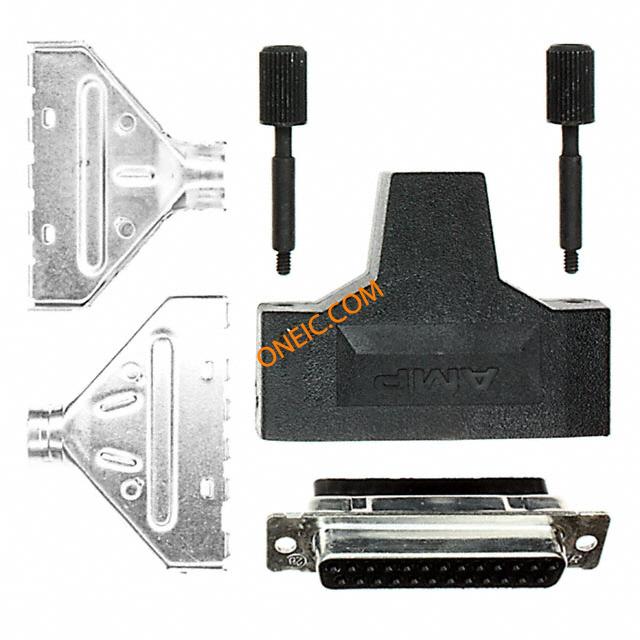

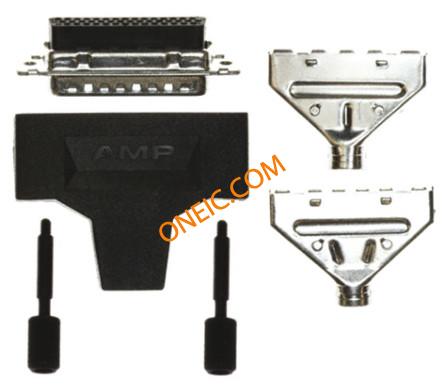

1658658-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 25 POS Crimp ST Cable Mount Bulk D-Sub Standard Connectors HDP-20 D 25R Standard Cable Connectors CONN D-SUB RECEPT 25POS W/O CONT AMPLIMITE HDP-20 d-sub socket kit,22 way Conn Housing RCP 25 POS Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET & BACKSHELL, D, 25WAY Conn;D-Sub;CableSocket;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingEncl.Kit HDP20 Series 25 Position Shielding Hardware Socket Metal Kit D-Sub TE Connectivity AMPLIMITE HDP-20 25触点, 套件包含插孔螺钉和插件 KIT,HDP-20,ENCLSUR,RCPT,SIZE 3 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 250VAC | ||
机械参数
| 颜色 | Black | 高度 | 16 mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 外壳尺寸 | 3 | 导线线规 | 20 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin over Copper | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Cable Side (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 壳体镀层 | :Tin | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 本体材料 | :Metal | 屏蔽材料 | Steel |
| 壳体材料 | Nylon | 总长度 | 56.13 mm |
| 主要材料 | D-Subminiature | 端接样式 | Crimp |
| 触点数 | 25 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 25 | 外壳尺寸-插件 | :3 |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | HDP-20 |
| 产品特性 | Backshell, Shielded | 制造商全称 | HDP-20 |
| 适用产品/相关产品 | :HDP-20 Series D Sub Connectors | ||
