点击放大查看

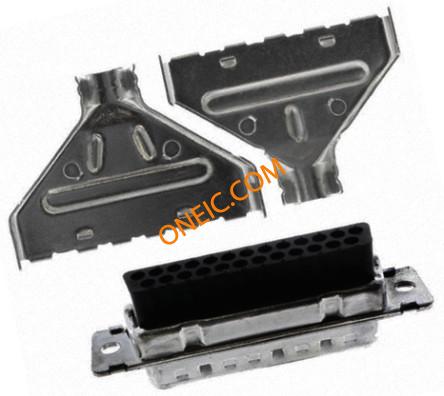

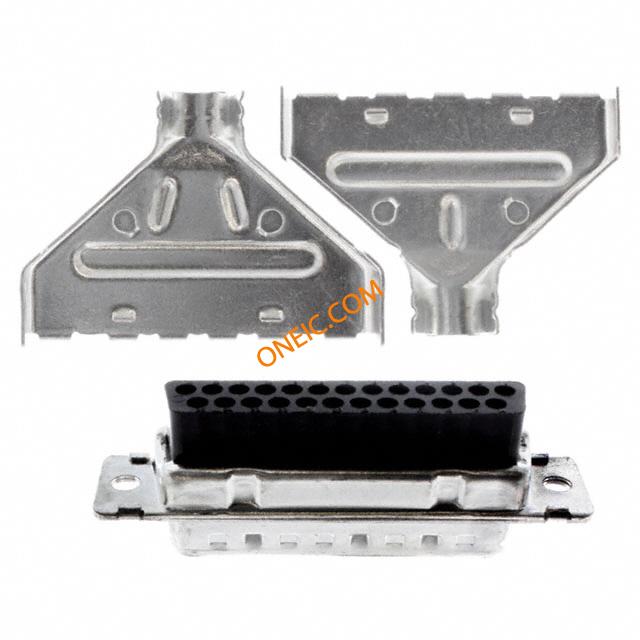

1658648-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 25 POS 2.76mm Crimp ST Bulk D-Sub Standard Connectors DSUB B25P CRIMP KIT Standard Cable Connectors CONN D-SUB PLUG 25POS W/O CONT AMPLIMITE HDP-20 cable Plug+Shield 25P Conn Housing PL 25 POS 2.76mm Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 3, STEEL Conn;D-Sub;CablePlug;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingHDWRKit KIT,HDP-20,OVRMLD,PLUG,SIZE 3, |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366910 | 认证机构 | ULRecognized,ULListedandCSACertified |
电气参数
| 额定电压 | 250 V ac | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 高度 | 12.92 mm | 重量 | 0.018 |
| 包装方式 | Bulk | 外壳尺寸 | 3 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 3 | 触头类型 | Signal |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 电缆直径 | 0.35" | 连接器类型 | Plug for Male Contacts |
| 接触镀层 | Tin | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 本体材料 | :Metal |
| 屏蔽材料 | Steel | 壳体材料 | Nylon |
| 总长度 | 53.41 mm | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 触点数 | 25 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 绝缘直径 | 0.165-0.455" |
| 位数 | 25 | 外壳尺寸-插件 | :3 |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 16586 |
| 产品特性 | Grounding Indents, Shielded | 制造商全称 | HDP-20 |
| 应用细节 | Commercial | 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts |
环境参数
| 工作温度 | -55C to 105C | ||
