66506-3

点击放大查看

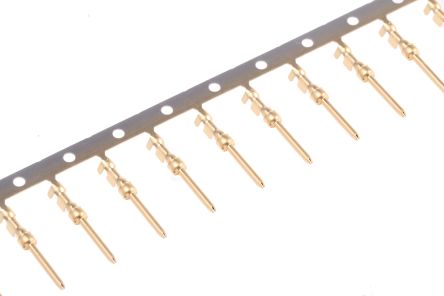

66506-3

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
分类
连接器解决方案接触件接触件（通用）

商业参数

产品类别Standard Circular Contacts标准包装数量10,000
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
抗辐射加固No无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

最大额定电流3.7 A最小供电电压250VAC

机械参数

深度2.67 mm间距Not Required mm
重量0.00192镀层Gold
材料（通用）Brass包装方式Tape & Reel (TR)
导线线规20-24 AWG端接方式Crimp
触点尺寸20触头类型Signal
引脚直径1.02 [0.040]安装类型Straight
插针或插孔Pin连接器类型Connector D-Subminiature
接触镀层Gold Over Palladium Nickel|Gold Over Nickel安装样式Cable
触头材料Brass壳体材料Not Required
包装数量Strip绝缘高度Yes
第一触头极性Pin (Male)触点数Not Required
接触件端接Crimp Snap-In绝缘直径1.27 – 1.52 [0.050 – 0.060]
镀层厚度（通用）Flash线规或范围 - AWG0.2 - 0.6 [24-20]

产品信息

类型Stamped等级Standard
连接器性别PIN系列HDP-20 (Crimp Snap)
产品子类型Contact端口数1 Port
适用产品/相关产品:HDP-20 Series Connectors适用/相关制造商CPC Connectors, AMPLIMITE HDP-20

环境参数

工作温度-55C to 105C

文档与媒体

TE.Connect?C=1&M=BYPN&TCPN=66506-3&RQPN=66506-3
1643337.pdf
1276248.pdf
66506-3?RQPN=66506-3
