点击放大查看
1658642-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS Crimp ST D-Sub Standard Connectors DSUB E09P CRIMP Standard Cable Connectors CONN D-SUB HOUSING PLUG 9POS AMPLIMITE HDP-20 d-sub cable plug,9 pin Conn Housing PL 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, MALE Conn;D-Sub;CablePlug;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插头 HDP-20,PLUG,SIZE 1, 9 POSN,CLI |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 80 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 17.7mm |
| 宽度 | 12.54mm | 高度 | 12.54 mm |
| 长度 | 30.81mm | 重量 | 0.02 |
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Crimp Snap |
| 法兰特征 | Board Side (4-40) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 壳体镀层 | :Tin | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Clinch Nut, 4-40 UNC | 本体材料 | :Metal |
| 壳体材料 | Thermoplastic | 总长度 | 30.81 mm |
| 主要材料 | D-Subminiature | 接地凹痕 | With |
| 端接样式 | Crimp | 触点数 | 9 |
| 介电材料 | Thermoplastic | 位数 | 9 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Clinch Nut: 4-40 threads with self-locking feature; Plugs accept size 20 DF pin | 类型 | Housing |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | 16586 | 产品特性 | Grounding Indents |
| CAD图纸 | 3D CAD Model | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series D Sub Connectors | ||
环境参数
| 工作温度 | 105°C | ||
相关型号
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
205203-8
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST D-Sub Standard Connectors 9P SOCKET ZINC Standard Cable Connectors CONN D-SUB HOUSING RECEPT 9POS AMPLIMITE HDP-20 d-sub cable socket,9way Conn Housing RCP 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SIZE 1
205203-3
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST D-Sub Standard Connectors 9P SOCKET TIN Standard Cable Connectors CONN D-SUB HOUSING RECEPT 9POS AMPLIMITE HDP-20 d-sub cable socket,9way Conn Housing RCP 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HOUSING, D SUB, RECEPTACLE, 9WAY Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell D-Sub crimp socket-housing 9P, 205203-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SIZE 1
215715-1
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST Cable Mount D-Sub High Density Connectors 09P HDP20 REC ASSY Standard Cable Connectors CONN RCPT 9POS CRIMP SNAP METAL AMPLIMITE HDP-20 d-sub cable socket,9way D-Sub Standard Connectors 09P HDP20 REC ASSY Conn Housing RCP 9 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, RECEPTACLE, HD 20, 9WAY D-SUBRECEPTACLE9WAY
1658539-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 24-20 Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 Pin Contact 24-20 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDPINCONT.AUPLTD,LP TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 D-sub 连接器触点, 镀锡镀金 触点, 24 → 20 AWG PIN CONT DUPL PLT LP HD-20 AMP
66507-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, 28-24AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF PIN PLTD
66506-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Connector PIN CONTACT 24-20AWG sel gold o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 24-20AWG Contact,Pin,20DF,Male Crimp Contact 7.5 A, 66506-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
6-66506-2
te connectivity / amp
Contact PIN Wire Wrap ST Cable Mount Loose Piece D-Sub Contacts CRIMP SNAP PIN CONN PIN 20-24AWG GOLD CRIMP

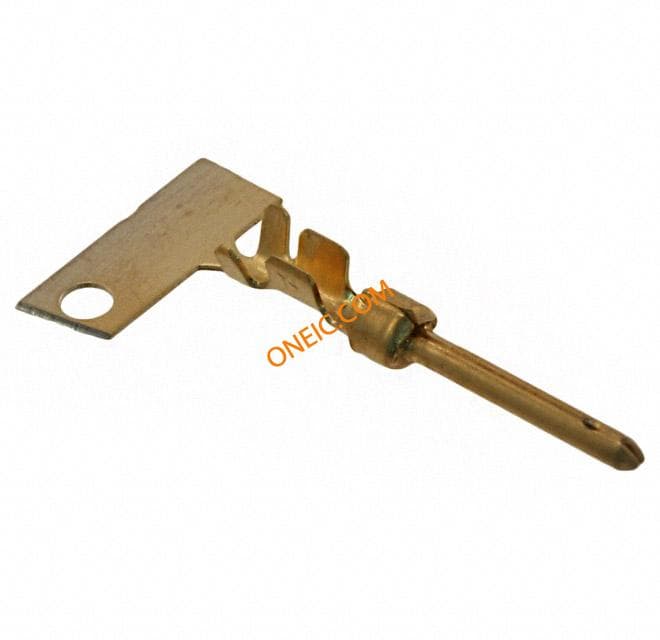

66506-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TERMINAL, 24-20 AWG CONTACT,PIN,HDP-20,PLATED,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG HD 20 DF PIN PLTD
1658646-1
te connectivity / amp
Conn Housing RCP 9 POS 2.76mm Crimp ST Bulk D-Sub Standard Connectors E09S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 9POS W/O CONT AMPLIMITE HDP20 d-sub socket kit, 9 way Conn Housing RCP 9 POS 2.76mm Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 9POS, STEEL Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldedHDWRKit TE Connectivity AMPLIMITE HDP-20 9触点 D-Sub插座连接器套件, 套件包含内部屏蔽、外部屏蔽 KIT,HDP-20,OVRMLD,RCPT,SIZE 1,
166995-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DP CRIMP PIN Standard Cable Connectors CONN D-SUB PIN 32-28AWG CRIMP Standard Cable Connectors Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinBrass Contact Base MaterialWire Termination Type = CrimpSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 20DP CRIMP PIN

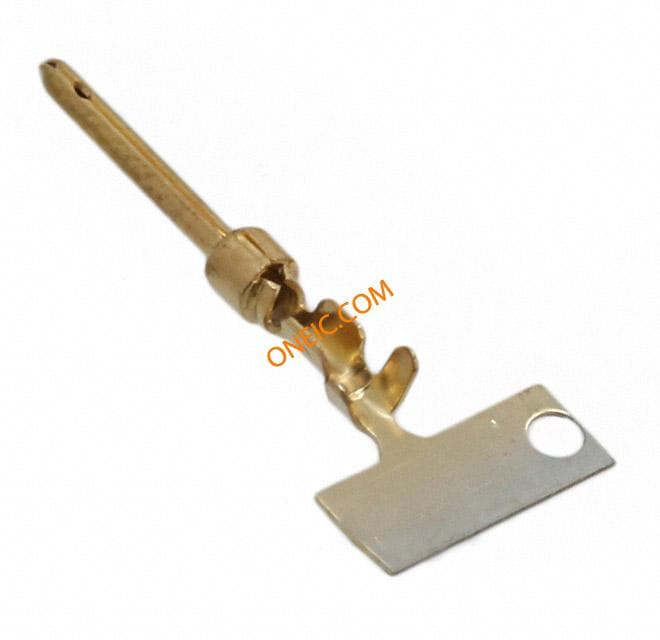

66507-9
