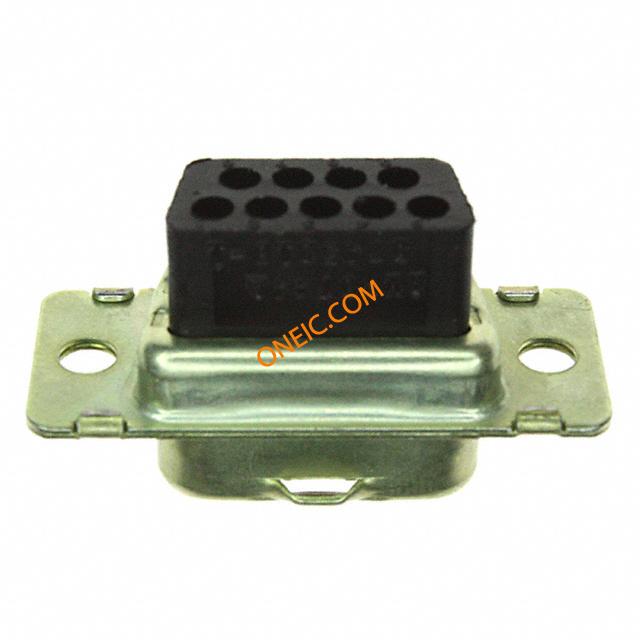

5745018-1

制造商	TE Connectivity Ltd.
描述	Conn D-Subminiature M 9 POS D-Sub Standard Connectors DSUB E09P CRIMP Standard Cable Connectors CONN D-SUB HOUSING PLUG 9POS Conn Housing PL 9 POS Crimp ST Conn Housing PL 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDJ-20Number of Positions = 9PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRMP SNP PLUG ASSY,9 POS
分类	连接器解决方案D-Sub连接器

商业参数

产品类别	D-Sub Standard Connectors	标准包装数量	Bulk
工厂包装数量	800

合规参数

RoHS	RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	最大额定电流	1.2 A to 3.1 A
最小供电电压	250VAC

机械参数

颜色	Black	深度	16.91 mm
高度	12.54 mm	外形尺寸(长x宽)	1
包装方式	Bulk	绝缘类型	Insulated
外壳尺寸	1	触头类型	Signal
外壳表面处理	锌	第二连接器	Without
外壳颜色	Black	安装类型	Free Hanging (In-Line)
外壳镀层	Zinc	端子尺寸	20
连接器类型	Plug for Male Contacts	法兰特征	Housing/Shell (Unthreaded)
安装样式	Through Hole	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub
插入件材料	Nylon	壳体材料	Nylon
总长度	30.81 mm	包装数量	800
接地凹痕	Without	端接样式	Crimp
触点数	9 POS	介电材料	Polyamide (PA), Nylon, Glass Filled
位数	9	外壳尺寸-插件	Full Metal Shell
兼容外壳尺寸（如TM-700等）	尺寸 20 压接扣入式端子	外壳镀层厚度	200µin (5.08µm)
外壳材料及表面处理	Steel, Yellow Chromate Plated Zinc	触点材料 - 镀层	玻璃填充 PBT/尼龙
外壳尺寸，连接器布局	1 (DE, E)

产品信息

备注	Contacts Not Provided	类型	D-Subminiature
等级	Standard	连接器性别	M
系列	HDJ-20	产品子类型	Connector
适用/相关制造商	Size 20 Crimp Snap-in Contacts
