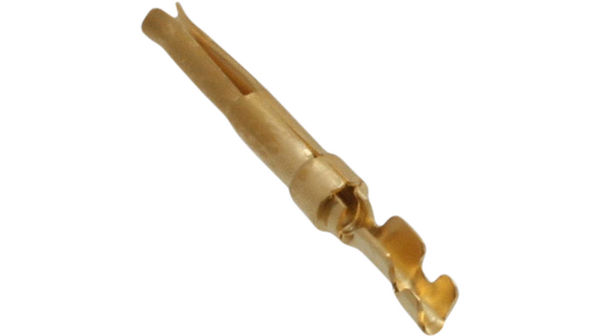

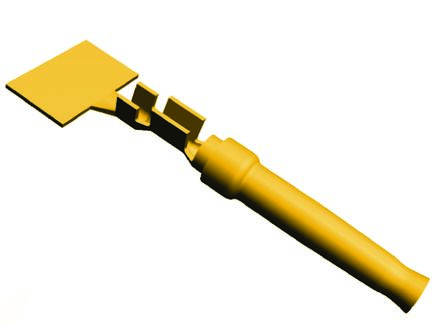

66505-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN SOCKET 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Standard Circular Contacts SOCKET CONTACT 28-24 sel gold o/nickel Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP SOCKET, 28-24AWG SOCKETCONTACT,20DF Crimp Contact 7.5 A, 66505-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG SOCKET CONTACT, 20 DF |
| 分类 |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | :15mohm |
| 最大额定电流 | 1.2 A | ||
机械参数
| 深度 | 2.16 mm | 间距 | Not Required mm |
| 长度 | 14.35mm | 重量 | 0.009 |
| 镀层 | Gold | 材料（通用） | Phosphor Bronze |
| 包装方式 | Bulk | 导线线规 | 24-28 AWG |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 14.1 mm | 包装数量 | Loose Piece |
| 绝缘高度 | Yes | 第一触头极性 | Pin (Male) |
| 触点数 | Not Required | 接触件端接 | Crimp Snap-In |
| 绝缘直径 | 0.76 â 1.02 [0.030 â 0.040] | 镀层厚度（通用） | Flash |
| 线规或范围 - AWG | :28AWG | 线规或范围 - mm² | 0.08 - 0.20 [28-24] |
| 外径-未扩张 | :1.02mm | ||
产品信息
| 类型 | Stamped | 等级 | Standard |
| 连接器性别 | SKT | 系列 | HDP-20 (Crimp Snap) |
| 产品子类型 | Contact | 端口数 | 1 Port |
| 适用产品/相关产品 | :HDP-20 Series Connectors | 适用/相关制造商 | CPC Connectors, AMPLIMITE HDP-20 |
环境参数
| 工作温度 | :105°C | ||
相关型号
206126-1
te connectivity / amp
Conn CPC SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Standard Circular Connector CPC PLUG ASSEMBLY SI CPC Connectors CONN PLUG CPC 28POS STD SER 2 Conn CPC SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 17 28POS FREE HANGING CPC PLUG ASSEMBLY SIZE 17-28
749246-1
te connectivity / amp
Conn D-Subminiature PL 15 POS Crimp ST Cable Mount 15Terminal 1Port CONN D-SUB RECEPT 15POS W/O CONT Conn Housing RCP 15 POS Crimp ST Bulk Conn Housing RCP 15 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)15 PositionsShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub
91285-1
te connectivity / amp
Straight Action Hand Tool, Insertion/Extraction Tool D-Sub Tools & Hardware INSERT/EXTRACT TOOL W/6 TIPS & WRENCH INSERTION/EXTRACTION TOOL HDP-22 AMPLIMITE HD20, HD22 insert,extract tool INSERTION/EXTRACTION TOOL INSERTION/EXTRACTIONTOOLFORSZ.20CRIMP&SOLDERCUPCONTACTS Insertion/Extraction Tool Kit Contains 6 Tips With Plug And Hex Wrench Ejector tool, 91285-1, TE Connectivity TE Connectivity AMPLIMITE 系列 拔插件工具 插芯 , 尺寸20, 22 INSERT/EXTRACT TOOL ASSEMBLY
205203-8
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST D-Sub Standard Connectors 9P SOCKET ZINC Standard Cable Connectors CONN D-SUB HOUSING RECEPT 9POS AMPLIMITE HDP-20 d-sub cable socket,9way Conn Housing RCP 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SIZE 1
215715-1
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST Cable Mount D-Sub High Density Connectors 09P HDP20 REC ASSY Standard Cable Connectors CONN RCPT 9POS CRIMP SNAP METAL AMPLIMITE HDP-20 d-sub cable socket,9way D-Sub Standard Connectors 09P HDP20 REC ASSY Conn Housing RCP 9 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, RECEPTACLE, HD 20, 9WAY D-SUBRECEPTACLE9WAY
1658656-1
te connectivity / amp
Conn Housing RCP 15 POS Crimp ST Cable Mount Bulk D-Sub Standard Connectors DSUB A15S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 15POS W/O CONT AMPLIMITE HDP-20 d-sub socket kit,15 way Conn Housing RCP 15 POS Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET & BACKSHELL, D, CRIMP, 15WAY Conn;D-Sub;CableSocket;15Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingEncl.Kit TE Connectivity AMPLIMITE HDP-20 15触点, 套件包含插孔螺钉和插件 KIT,HDP-20,ENCLSUR,RCPT,SIZE 2
206438-2
te connectivity / amp

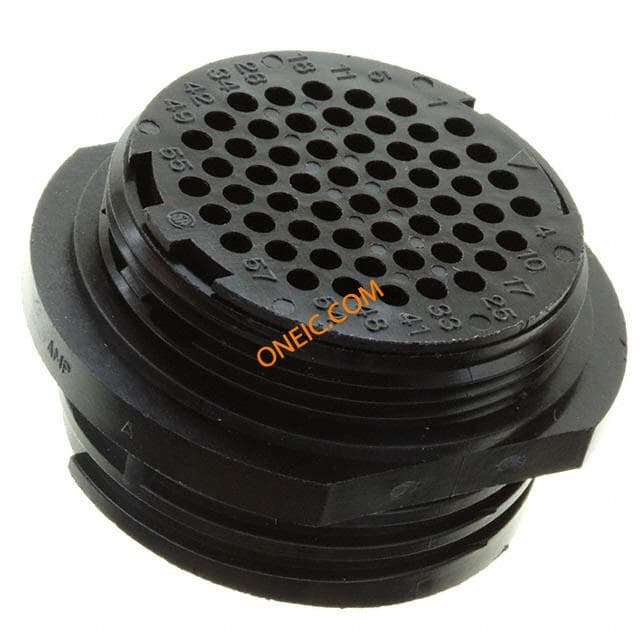

Conn CPC SKT 57 POS Crimp ST Cable Mount 57 Terminal 1 Port CPC Connectors CONN RECEPT CPC 57POS REV SER 2 Standard Circular Connector RECPT REV F.H. 23-57 Conn CPC SKT 57 POS Crimp ST Cable Mount 57 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 57ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 57WAY ConnectorHousing;CPCRecept.Assy;57Pos;Sz23;Series2;FreeHang;RevSex CPC RECPT ASSEMBLY SIZE 23-57
