点击放大查看

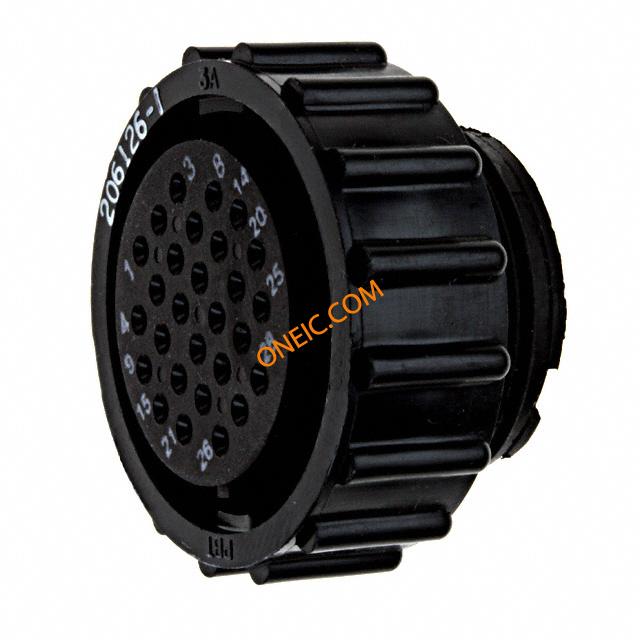

206126-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Standard Circular Connector CPC PLUG ASSEMBLY SI CPC Connectors CONN PLUG CPC 28POS STD SER 2 Conn CPC SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 17 28POS FREE HANGING CPC PLUG ASSEMBLY SIZE 17-28 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 通道数量 | 28 | ||
机械参数
| 密封型 | No | 重量 | 0.009 |
| 包装方式 | Bulk | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 连接器样式 | Plug |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 端接样式 | Wire | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 28 |
| 位数 | 28 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Free Hanging |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | CPC |
| 预加载 | No | 产品子类型 | Connectors |
| 其他规格 | With | 适用产品/相关产品 | Socket Contacts |
相关型号
1658537-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 24-20 PHBZ/SN Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP 1658537-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONT,SOCKET,PLATED,20DF,STRIP,#20-24
66504-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts CRIMP SOCKET 24-20 Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, SOCKET, 24-20AWG, CRIMP CRIMP SOCKET, 24-20AWG CONTACT, SOCKET, 24-20AWG, CRIMP, FULL REEL CONTACT,SOCKET,HDP-20,CRIMP,1.27-1.52MM HDP20 Series 20-24 AWG Gold Flash Crimp Socket D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF SCKT CONT
66569-3
te connectivity / amp
Contact SKT Solder Cup ST Cable Mount Loose Piece Standard Cable Connectors CONN SOCKET SOLDER CAP 30AU AMPLIMITE HDP-20 socket crimp contact Standard Circular Connector SOLDER SKT CNT 18 Contact SKT Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 18AWG, SOLDER 20DFSOCKETCONT.L.P. Contact; female; 0.9mm2; HDP-20; gold plated; soldering HDP-20 Series 18 AWG Non Insulation Crimp Snap Solder Socket Contact Crimp Contact 7.5 A, 66569-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 焊杯 插座 D-sub 连接器触点, 镀金镀镍 触点, 22 → 18 AWG 20DF SOCKET CONT. L.P.

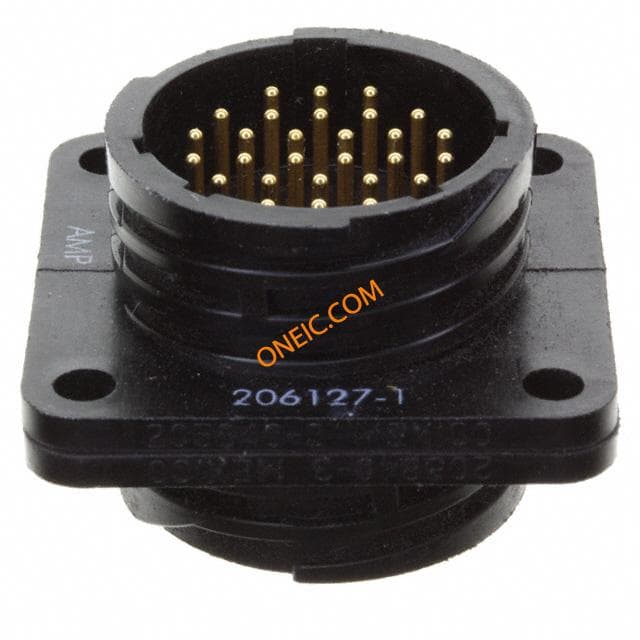

206127-1
