点击放大查看

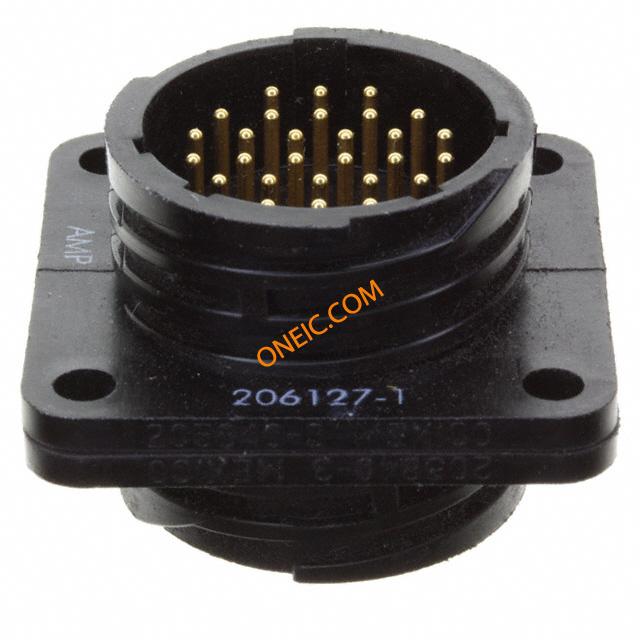

206127-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 28 POS Crimp ST Panel Mount 28 Terminal 1 Port CPC Connectors CONN RECEPT CPC 28POS STD SER 2 Housing Recept 28 way Socket size 17 CPC Standard Circular Connector CPC SPECIAL ASSEMBLY Conn CPC PIN 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT SIZE 17, 28POS, PANEL HousingRecept28waySocketsize17CPC TE Connectivity Series 2 系列 28路 面板安装 直向 连接器 插座 , 公触点 CPC SPECIAL ASSEMBLY SIZE 17 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Trays | 工厂包装数量 | 24 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 通道数量 | 28 |
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | No |
| 重量 | 0.018 | 出线方向 | No |
| 外壳尺寸 | 17 | 端接方式 | Crimp |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 28Signal |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 插针或插孔 | Pin | 连接器类型 | :Circular Industrial |
| 接触镀层 | Gold | 安装样式 | Panel |
| 连接器样式 | Receptacle | 本体材料 | :Thermoplastic |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 26.42 mm | 面板安装类型 | Square Flange |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 28 |
| 位数 | 28 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.81 [.150] | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 17-28 |
产品信息
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 2 | 预加载 | Yes |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 射频系列/标准 | 206127 | 其他规格 | Without |
| 转换端（适配器端） | Circular, Male Pins, 28 Pos, 17 Shell Size | 转换自（适配器端） | Circular, Male Pins, 28 Pos, 17 Shell Size |
环境参数
| 密封等级 | IP65 | 工作温度 | +100°C |
