点击放大查看

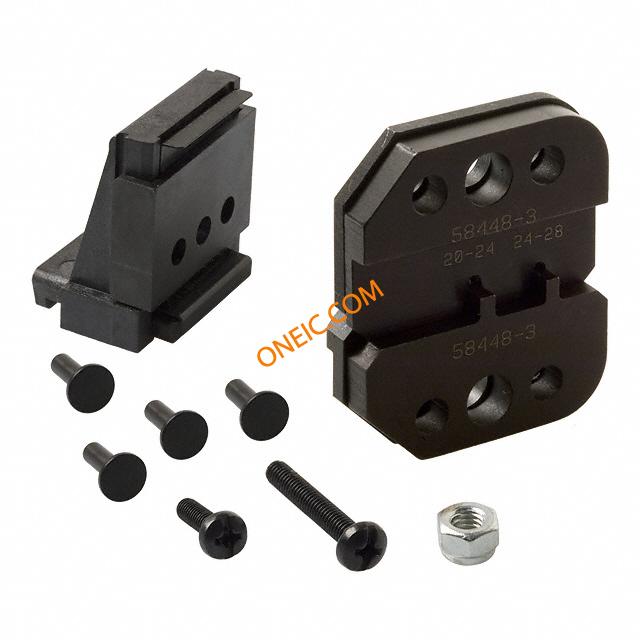

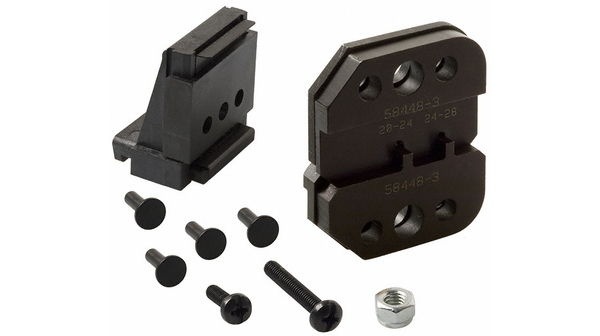

58448-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Crimp Die Set Punches & Dies PRO-CRIMPER DIE DIE SET D-SUB CRIMP CONTACTS AMPLIMITE HDP-20 Pro-crimper III die set SDE Die Set, AMPLIMITE 20 DF DIE, CPC SERIES 2 AMP;DIESETONLY;DSUB20DFPINANDSOCKET;28-20AWG Crimp insert for 0.08...0.6 mm², 58448-3, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 28 → 20 AWG 线规格, AMPLIMITE HD-20 Contacts PRO-CRIMPER DIE |
| 分类 |
商业参数
| 产品 | Dies | 产品类别 | Punches & Dies |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | :0.08mm² | 连接器类型 | D-SubPins |
| 主要材料 | DieSet | 配接方向 | :D-sub Pins and Sockets |
| 线规或范围 - AWG | :28AWG | 线规或范围 - mm² | :0.6mm² |
产品信息
| 类型 | Die Set | 系列 | :SDE |
| 工具类型 | Die Set | 兼容工具 | 354940-1, 679304-1, 1213890-1, 1213890-2, 1490076-2, 9-1478240-0 |
| 射频系列/标准 | 58448 | 应用细节 | 28-20AWG |
| 适用产品/相关产品 | Circular and D-Sub Contacts, 20-28 AWG | ||
