点击放大查看

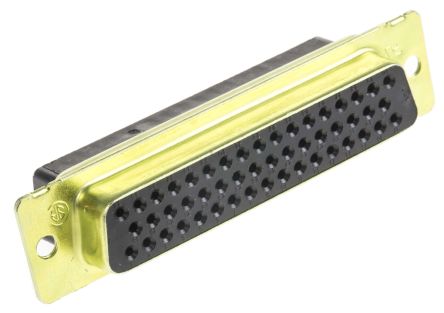

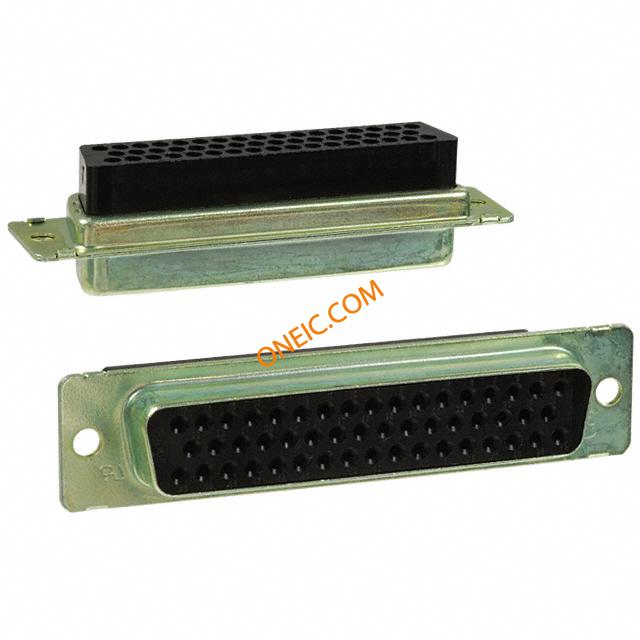

1658640-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature F 50 POS Crimp D-Sub Standard Connectors 50P SOCKET ZINC Standard Cable Connectors CONN D-SUB HOUSING RECEPT 50POS AMPLIMITE HDP20 d-sub cable socket,50way Conn Housing RCP 50 POS Crimp ST Conn Housing RCP 50 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 50POS, STEEL Conn;D-Sub;CableSocket;50Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell HDF-20 Series 50 Position Receptacle Crimp Snap Standard Cable Connector TE Connectivity AMPLIMITE HDP-20系列 50路 压接式 D-sub 连接器, 插座 RECP. ASSEMBLY SIZE 5 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 450 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250VAC | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 15.37mm |
| 宽度 | 7.9mm | 高度 | 15.36 mm |
| 长度 | 66.93mm | 重量 | 0.014 |
| 包装方式 | Bulk | 外壳尺寸 | 5 |
| 导线线规 | 28-24 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Zinc |
| 行程角度 | Straight | 连接器类型 | Crimp Snap |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Zinc |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Steel | 壳体材料 | Nylon |
| 总长度 | 66.92 mm | 主要材料 | D-Subminiature |
| 尺寸/外形 | 66.93 x 7.9 x 15.37mm | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 50 POS |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 50 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Receptacles accept size 20 DF socket contacts. | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | F |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts | ||
环境参数
| 工作温度 | -55C to 105C | ||
