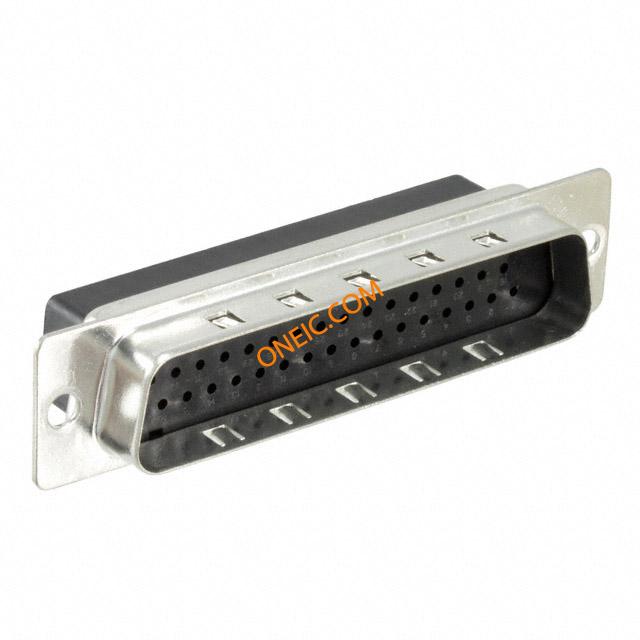

点击放大查看
167296-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 50 POS Crimp ST D-Sub Standard Connectors 50P.HDP20 PLUG ASSY Standard Cable Connectors CONN PLUG 50POS CRIMP SNAP AMPLIMITE HDP-20 d-sub cable plug,50 pin Conn Housing PL 50 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub AMPLIMITEHDP-20d-subcableplug,50pin D-Sub; PIN:50; male; w/o terminals; for cable; B:11.2mm; C:61.1mm D-Sub crimp plug-housing 50P, 167296-1, TE Connectivity 50P.HDP20 PLUG ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | In Transition | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电容 | 56 | 额定电压 | 250 |
| 极数 | 50 | 连接器阻抗 | 安装孔 |
| 最大额定电流 | 3.7/ContactA | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 17.6mm |
| 宽度 | 15.4mm | 高度 | 12.55 mm |
| 长度 | 55.3mm | 重量 | 0.01 kg |
| 外形尺寸(长x宽) | 5 | 钻孔直径 | 11.2mm |
| 包装方式 | Bulk | 壳体颜色 | 61.1 |
| 外壳尺寸 | 5 | 端接方式 | Crimp |
| 触点形式 | Signal | 触点尺寸 | 20 |
| 触头类型 | Signal | 外壳表面处理 | 锡 |
| 第二连接器 | With | 安装类型 | Straight |
| 外壳镀层 | Tin | 端子尺寸 | 20 |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Nylon | 锁定特性 | Mounting Holes |
| 触头材料 | copper alloy | 壳体材料 | Steel |
| 包装数量 | 50 | 尺寸/外形 | see |
| 接地凹痕 | With | 端接样式 | Crimp |
| 连接器颜色 | black | 外径 | 66.9mm |
| 触点数 | 50 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 绝缘直径 | 1.73 | 位数 | 50 |
| 外壳尺寸-插件 | Front Metal Shell | 第一连接器极性 | Male |
| 兼容外壳尺寸（如TM-700等） | 公端子 | 绝缘材料 - 材质 | PBT glass-fibre-reinforced |
| 外壳材料及表面处理 | Steel, Tin Plated | 小外径 | 61.1mm |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| SPG | 50 | 备注 | Contacts Not Provided |
| 类型 | Housing | 等级 | Standard |
| 连接器性别 | PL | 系列 | HDP-20 (Crimp Snap) |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 放大器类型 | 66.9 | 单元数量 | 1 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
