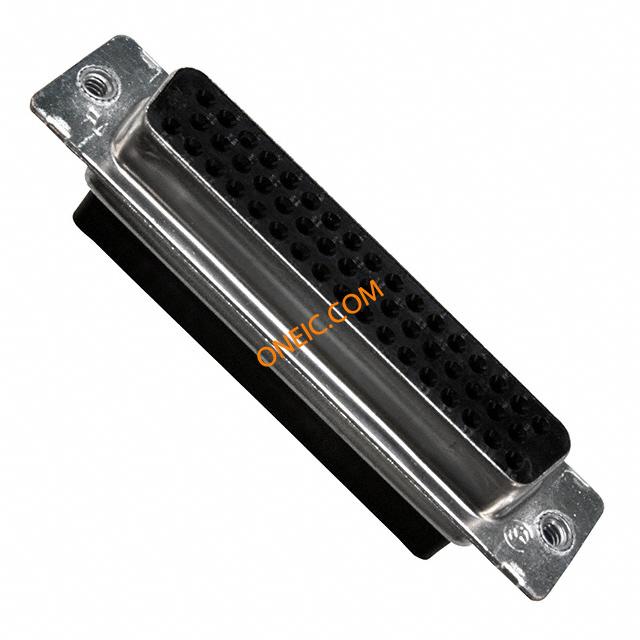

5745884-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature F 50 POS Crimp D-Sub Standard Connectors RCPT ASSY 50P HDP-20 Standard Cable Connectors CONN D-SUB RECEPT 50POS CRIMP Conn Housing RCP 50 POS Crimp ST Conn Housing RCP 50 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TE Connectivity HDP-20系列 50路 直 压接式 D-sub 连接器, 插座 RCPT ASSY,50P,HDP-20,CN |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 450 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V 交流 | 连接器阻抗 | 箝紧螺母，4-40 UNC |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 17.9 mm |
| 宽度 | 0.705in | 高度 | 15.36 mm |
| 长度 | 2.635in | 外形尺寸(长x宽) | 5 |
| 包装方式 | Bulk | 外壳尺寸 | 5 |
| 方向 | 直 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Tin | 端子尺寸 | 20 |
| 连接器类型 | Crimp Snap | 法兰特征 | Board Side (4-40) |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Clinch Nut, 4-40 UNC | 壳体材料 | Nylon |
| 总长度 | 66.92 mm | 包装数量 | 225 |
| 尺寸/外形 | 2.635 x 0.705 x 0.605in | 接地凹痕 | Without |
| 触点数 | 50 POS | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 50 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 触点材料 - 镀层 | 玻璃填充 PBT/尼龙 | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Clinch Nut: 4-40 threads with self-locking feature; Receptacles accept size 20 | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | F |
| 系列 | HDP-20 (Crimp Snap) | 产品子类型 | Connector |
环境参数
| 工作温度 | -55C to 105C | ||
