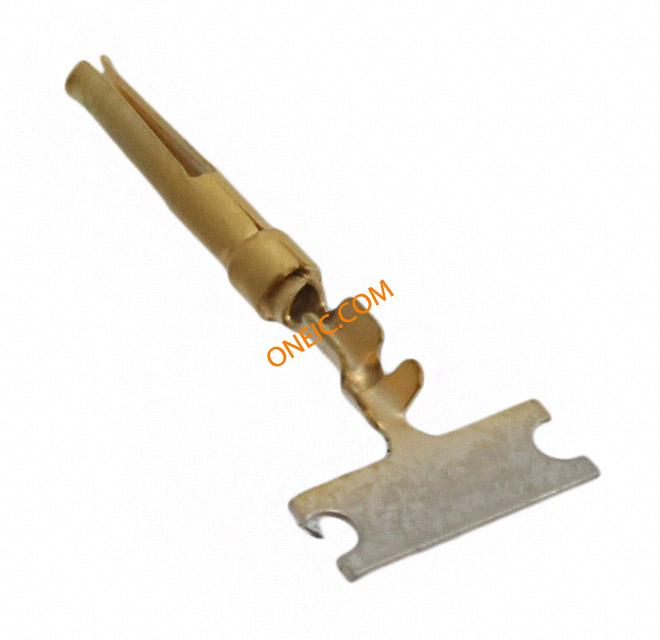

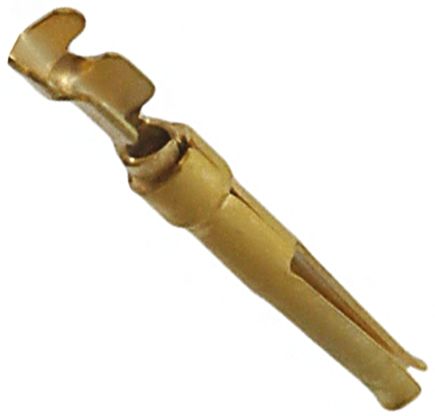

745253-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts CRIMP SOCKET 26-22 Standard Cable Connectors CONN SOCKET 22-26AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, SOCKET, 26-22AWG, CRIMP CONTACT,SOCKET,HDP-20,PLATED,CRIMP,1.01-1.27MM HDP-20 Series 26-22 AWG Standard Cable Connector Insulated Contact Socket Crimp TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 插座 D-sub 连接器触点, 镀金镀镍 触点, 26 → 22 AWG 20 DF SCKT CONT,PLTD |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | 10,000 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 0.002 | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Reel |
| 导线线规 | 26-22 | 端接方式 | Crimp |
| 触点尺寸 | 20DF | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 包装数量 | Strip | 主要材料 | Contact |
| 绝缘高度 | Yes | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件尾部长度 | 20 |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 1.01 â 1.27 [0.040 â 0.050] |
| 镀层厚度（通用） | Flash | 线规或范围 - AWG | :26AWG |
| 线规或范围 - mm² | 0.15 - 0.40 [26-22] | 触点材料 - 镀层 | GoldFlashoverNickel |
产品信息
| 类型 | Stamped | 等级 | Standard |
| 连接器性别 | SKT | 系列 | HDP-20 |
| 制造商全称 | AMPLIMITEHDP-20 | 产品子类型 | Contact |
| 适用产品/相关产品 | :CPC Connectors, AMPLIMITE HDP-20 | 适用/相关制造商 | CPC Connectors, AMPLIMITE HDP-20 |
